OGU 171 G3-T3 OGU Optical sensors

Di-soric Optical sensors Industrial Automation - OGU 171 G3-T3 OGU Optical sensors

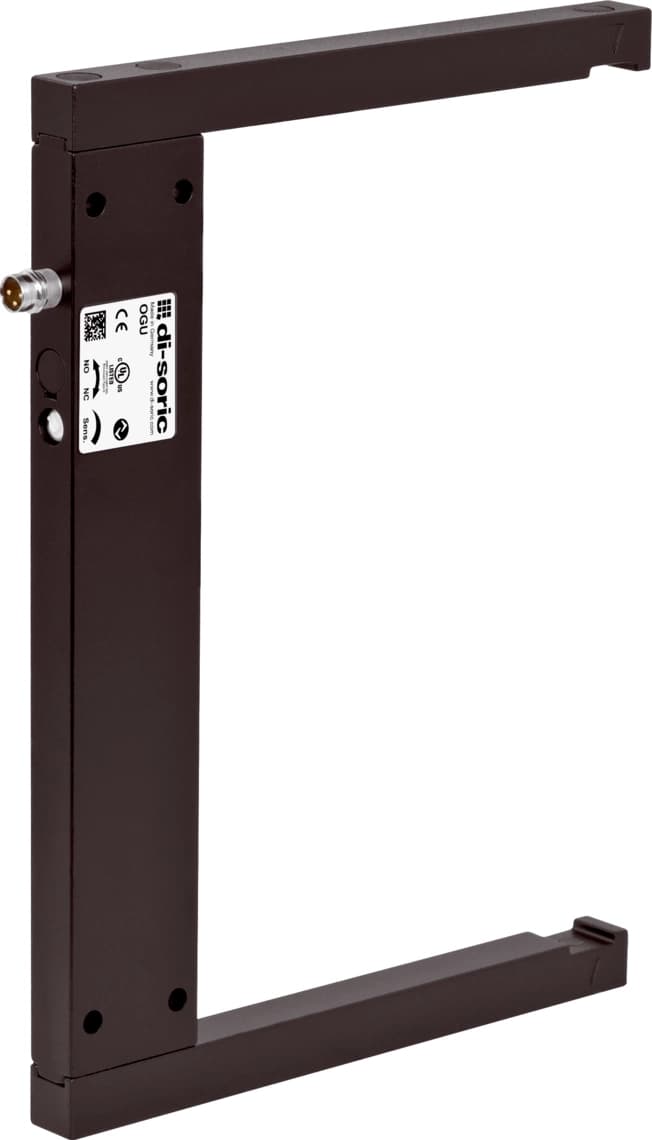

OGU 171 G3-T3 OGU Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGU 171 G3-T3 OGU Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening170 mm
Leg length internal110 mm
Housing dimensions194 x 140 x 12 mm
Housing length140 mm
Housing height194 mm
Housing width12 mm
Housing materialDie-cast zinc (Black, powder-coated)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
ModulationClocked
Resolution (factory setting)0.5 mm (STANDARD)
Reproducibility (factory setting)0.03 mm (STANDARD)
Resolution (STANDARD)0.5 mm
Reproducibility (STANDARD)0.03 mm
Resolution (HIGH RESOLUTION)0.4 mm
Reproducibility (HIGH RESOLUTION)0.03 mm
Resolution (POWER)1.5 mm
Reproducibility (POWER)0.03 mm
Resolution (SPEED)0.5 mm
Reproducibility (SPEED)0.03 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
