Description

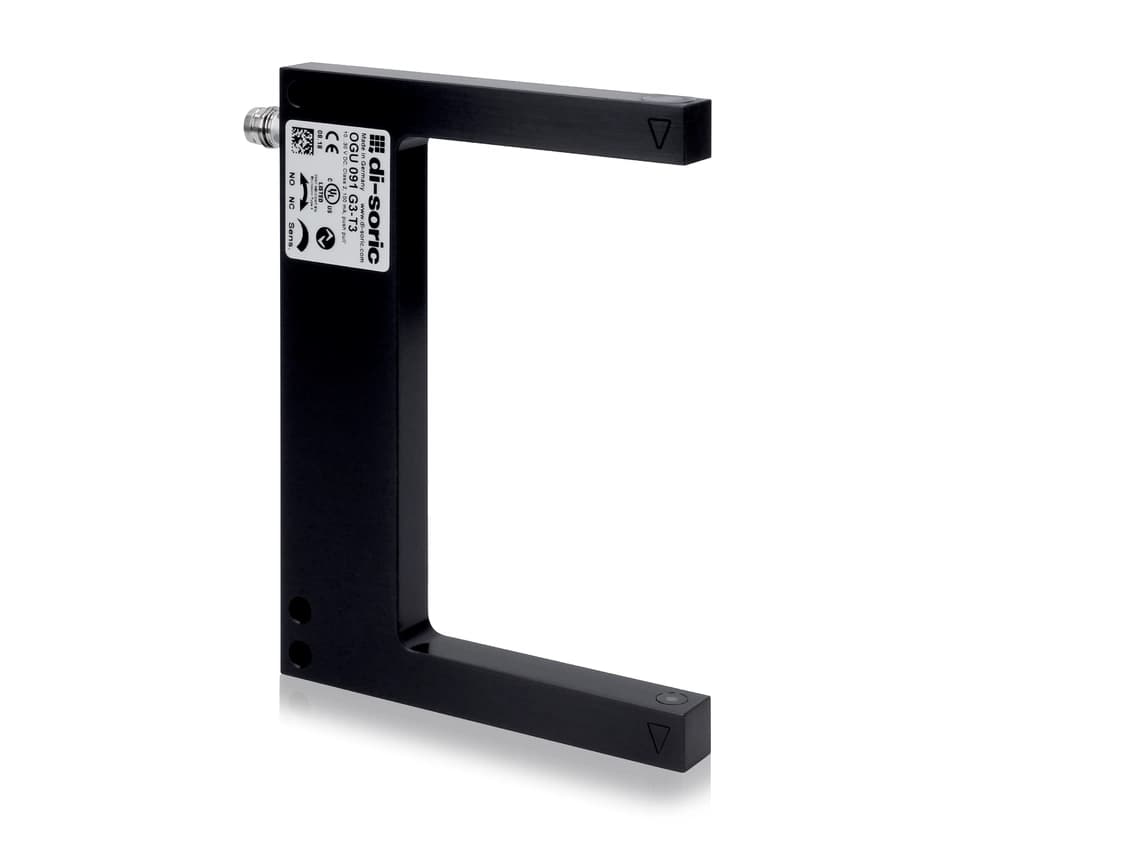

Fork light barrier OGU

OGU 091 G3-T3
Article Number: 210913

The OGU series with an LED light source is the standard among fork light barriers. The largest range of fork light barriers on the market includes devices with fork openings from 5 mm to 250 mm. OGU fork light barriers offer high resolution and reproducibility with formidable speed. They are operated intuitively using potentiometers, teach-in or IO-Link. Four preset operation modes provide the option for ideal adaptation to the application. At the same time, IO-Link offers important advantages in configuration and diagnosis.
4 operating modes as an IO-Link parameter
Switch-on/off delay as an IO-Link parameter
Diagnostics with IO-Link
Metal casing
Sensitivity is adjustable
High switching frequency
Light/dark switching
Bright ring LED
High protection type

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening90 mm
Leg length internal55 mm
Housing dimensions110 x 80 x 10 mm
Housing length80 mm
Housing height110 mm
Housing width10 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
ModulationClocked
Resolution (factory setting)0.3 mm (STANDARD)
Reproducibility (factory setting)0.02 mm (STANDARD)
Resolution (STANDARD)0.3 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.2 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)1 mm
Reproducibility (POWER)0.02 mm
Resolution (SPEED)0.3 mm
Reproducibility (SPEED)0.02 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
