OGU 051 G3-T3/V4A OGU Stainless steel Optical sensors

Name: OGU 051 G3-T3/V4A OGU Stainless steel Optical sensors
Brand: Di-soric
SKU: ogu-051-g3-t3v4a-ogu-stainless-steel-optical-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGU 051 G3-T3/V4A OGU Stainless steel Optical sensors

Description

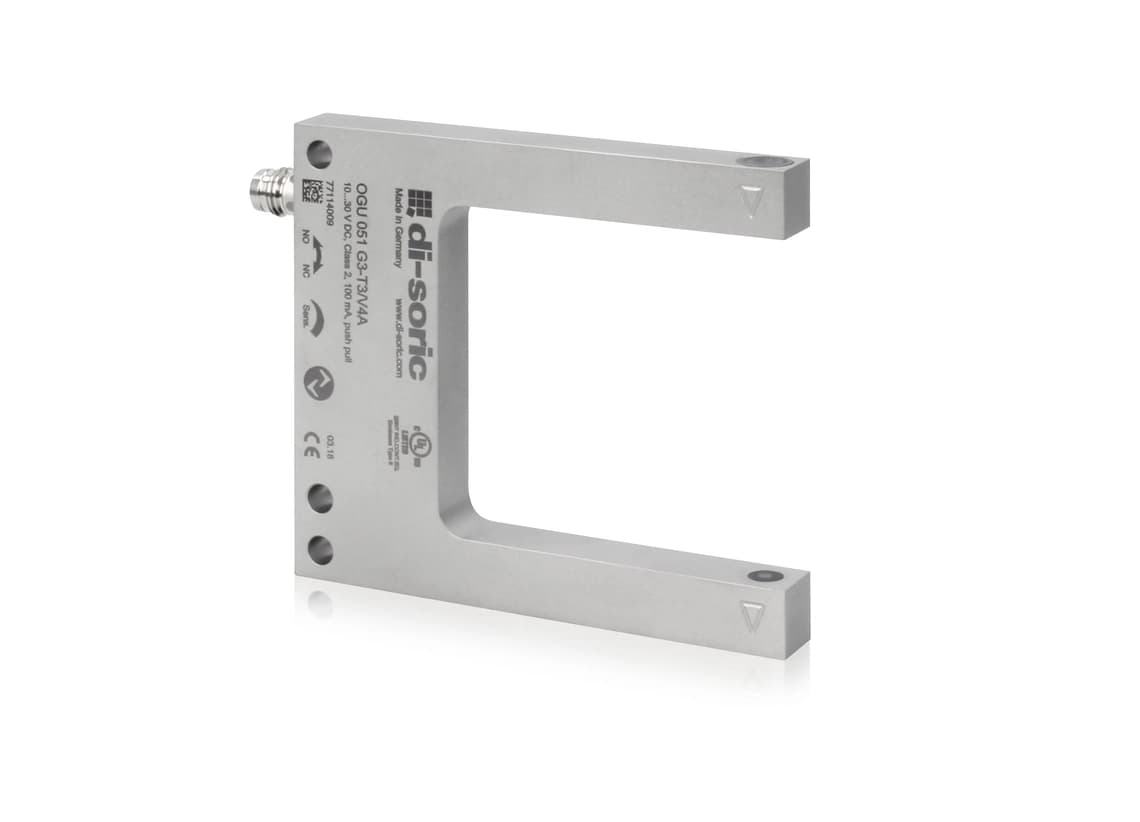

OGU stainless steel fork light barrier

OGU 051 G3-T3/V4A
Article Number: 210892

The OGU fork light barriers with V4A stainless steel housing are mechanically and electrically compatible with standard fork light barriers. These devices are used particularly in the pharmaceuticals, beverage and food industries, because they satisfy the particular requirements for easy and reliable cleaning using aggressive media.
Robust stainless steel housing for use in the pharmaceutical, beverage and food industries
4 operating modes as an IO-Link parameter
Switch-on/off delay as an IO-Link parameter
Diagnostics with IO-Link
Sensitivity is adjustable
High switching frequency
Light/dark switching
Bright ring LED
High protection type

Collapse all

Service voltage10 … 30 V DC

No-load current (max.)30 mA

Insulation voltage endurance500 V

Fork opening50 mm

Leg length internal55 mm

Housing dimensions70 x 80 x 10 mm

Housing length80 mm

Housing height70 mm

Housing width10 mm

Housing materialStainless steel (V4A, 1.4404 / AISI 316L - 1.4571 / AISI 316Ti)

Protection classIII, operation on protective low voltage

ApprovalsUL

Operating principleOptical

Evaluationdigital

DesignFork

Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED

Switching outputPush-pull, 100 mA, NO/NC, switchable

InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)

Light sourceLED

ColorRed

ModulationClocked

Resolution (factory setting)0.3 mm (STANDARD)

Reproducibility (factory setting)0.02 mm (STANDARD)

Resolution (STANDARD)0.3 mm

Reproducibility (STANDARD)0.02 mm

Resolution (HIGH RESOLUTION)0.2 mm

Reproducibility (HIGH RESOLUTION)0.02 mm

Resolution (POWER)1 mm

Reproducibility (POWER)0.02 mm

Resolution (SPEED)0.3 mm

Reproducibility (SPEED)0.02 mm

Sensitivity adjustmentPotentiometer or IO-Link

Switching frequency (factory setting)5000 Hz (STANDARD)

Switching frequency (STANDARD)5000 Hz

Switching frequency (HIGH RESOLUTION)1500 Hz

Switching frequency (POWER)250 Hz

Switching frequency (SPEED)8000 Hz

Ambient temperature during operation-25 … +60 °C

Protection typeIP 67

ConnectionConnector, M8, 3-pin

Connection cableTK …
