OGU 031 G3-T3/V4A OGU Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OGU 031 G3-T3/V4A OGU Stainless steel Optical sensors

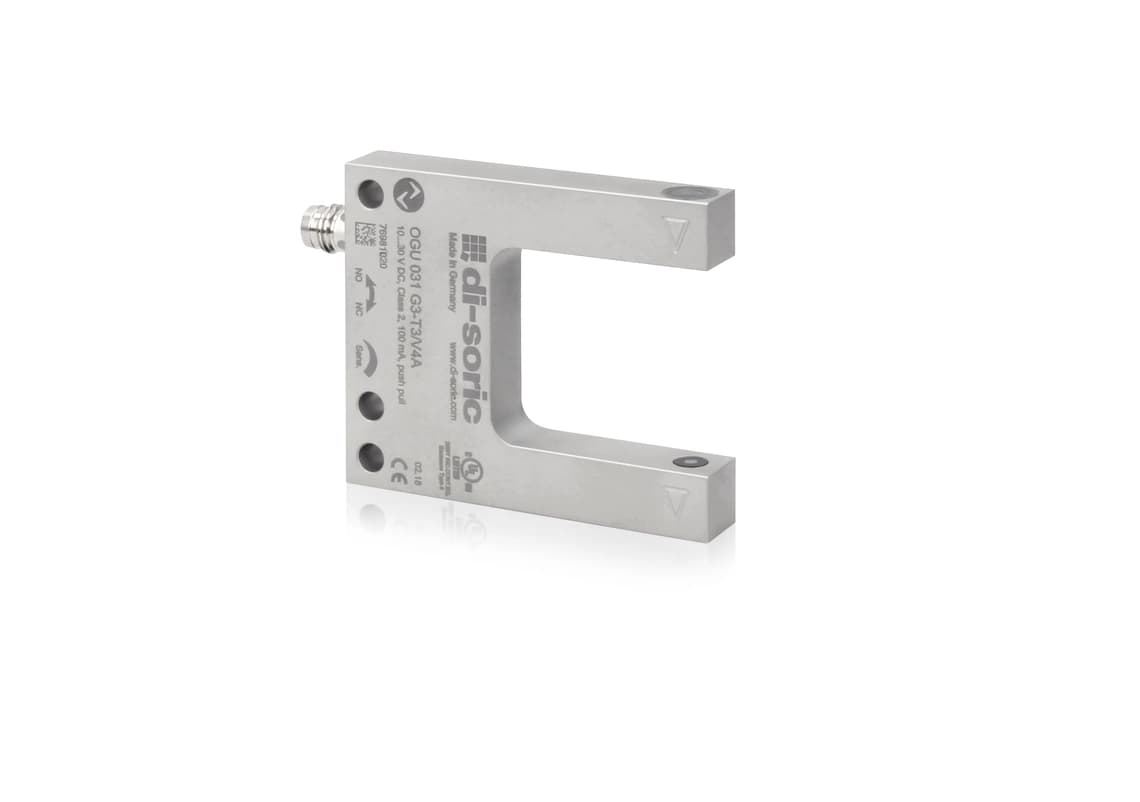

OGU 031 G3-T3/V4A OGU Stainless steel Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGU 031 G3-T3/V4A OGU Stainless steel Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening30 mm
Leg length internal35 mm
Housing dimensions50 x 60 x 10 mm
Housing length60 mm
Housing height50 mm
Housing width10 mm
Housing materialStainless steel (V4A, 1.4404 / AISI 316L - 1.4571 / AISI 316Ti)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
ModulationClocked
Resolution (factory setting)0.3 mm (STANDARD)
Reproducibility (factory setting)0.02 mm (STANDARD)
Resolution (STANDARD)0.3 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.2 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)1 mm
Reproducibility (POWER)0.02 mm
Resolution (SPEED)0.3 mm
Reproducibility (SPEED)0.02 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
