OGU 005 G3-T3 OGU Optical sensors

Di-soric Optical sensors Industrial Automation - OGU 005 G3-T3 OGU Optical sensors

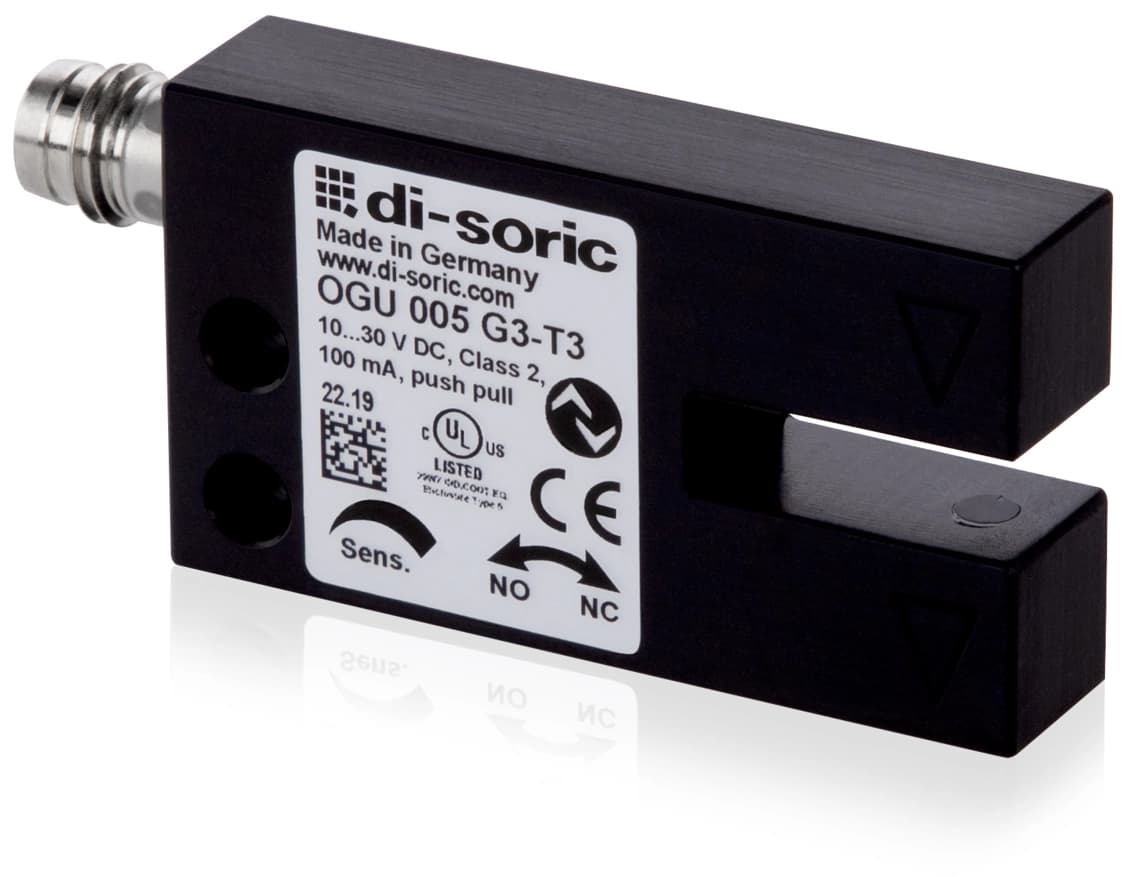

OGU 005 G3-T3 OGU Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGU 005 G3-T3 OGU Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening5 mm
Leg length internal16.8 mm
Housing dimensions25 x 45 x 10 mm
Housing length45 mm
Housing height25 mm
Housing width10 mm
Housing materialAluminum (Black, painted)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1.5 V
InterfaceIO-Link (V1.1, COM2 (38.4 kBd) Smart Sensor Profile)
Light sourceLED
ColorInfrared
Ambient light immunity25 kLx
Resolution (factory setting)0.2 mm (STANDARD)
Reproducibility (factory setting)0.02 mm
Resolution (STANDARD)0.2 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.1 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)1 mm
Reproducibility (POWER)0.02 mm
Resolution (SPEED)0.2 mm
Reproducibility (SPEED)0.02 mm
Switching hysteresis (max.)100 µm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)10000 Hz (STANDARD)
Switching frequency (STANDARD)10000 Hz
Switching frequency (HIGH RESOLUTION)10000 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)14000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
