Description

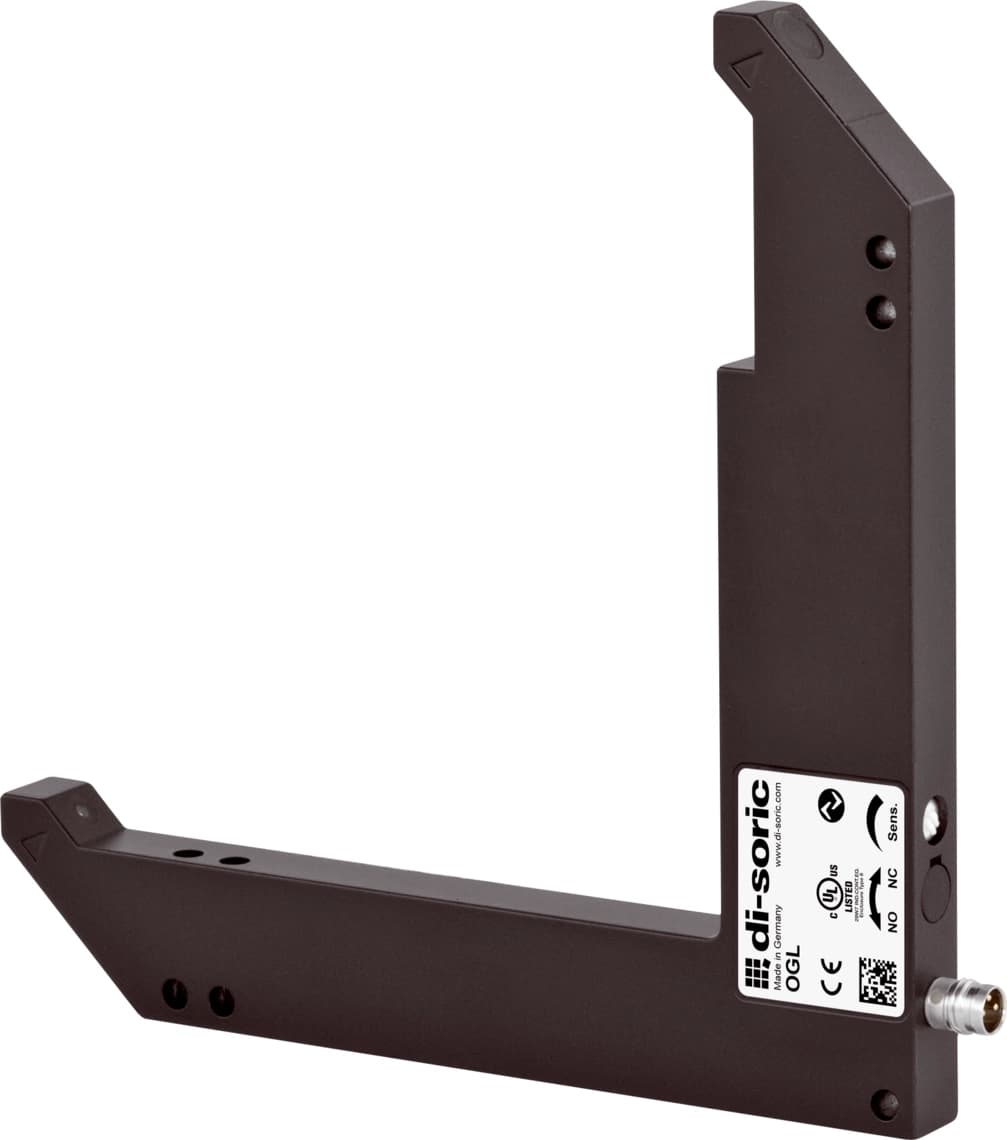

Angled light barrier OGLP Power

OGLP 120 G3-T3
Article Number: 212820

The high-performance angled light barriers from di-soric have an increased functional reserve. In the devices with a contamination indicator, the cleaning cycles are reduced to a minimum.
High function reserve
Extremely dirt-resistant
Collimator optics
Optical axis approachable in x-, y- and z-direction
Sensitivity is adjustable
Light/dark switching

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)30 mA
Insulation voltage endurance500 V
Leg length internal120/120 mm
Housing dimensions150 x 150 x 12 mm
Housing length150 mm
Housing height150 mm
Housing width12 mm
Housing materialDie-cast zinc (powder-coated)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignAngle
Switching outputPush-pull, 100 mA, NO/NC
Voltage drop (max.)1 V
InterfaceIO-Link
Light sourceLED
ColorInfrared
Wavelength860 nm
ModulationClocked
Ambient light immunity25 kLx
Range158 mm (optical axis)
Resolution (factory setting)2 mm (POWER)
Reproducibility (factory setting)0.03 mm (POWER)
Resolution (STANDARD)0.5 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.4 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)2 mm
Reproducibility (POWER)0.03 mm
Resolution (SPEED)0.5 mm
Reproducibility (SPEED)0.02 mm
Sensitivity adjustmentPotentiometer
Switching frequency (factory setting)200 Hz (POWER)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)200 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
