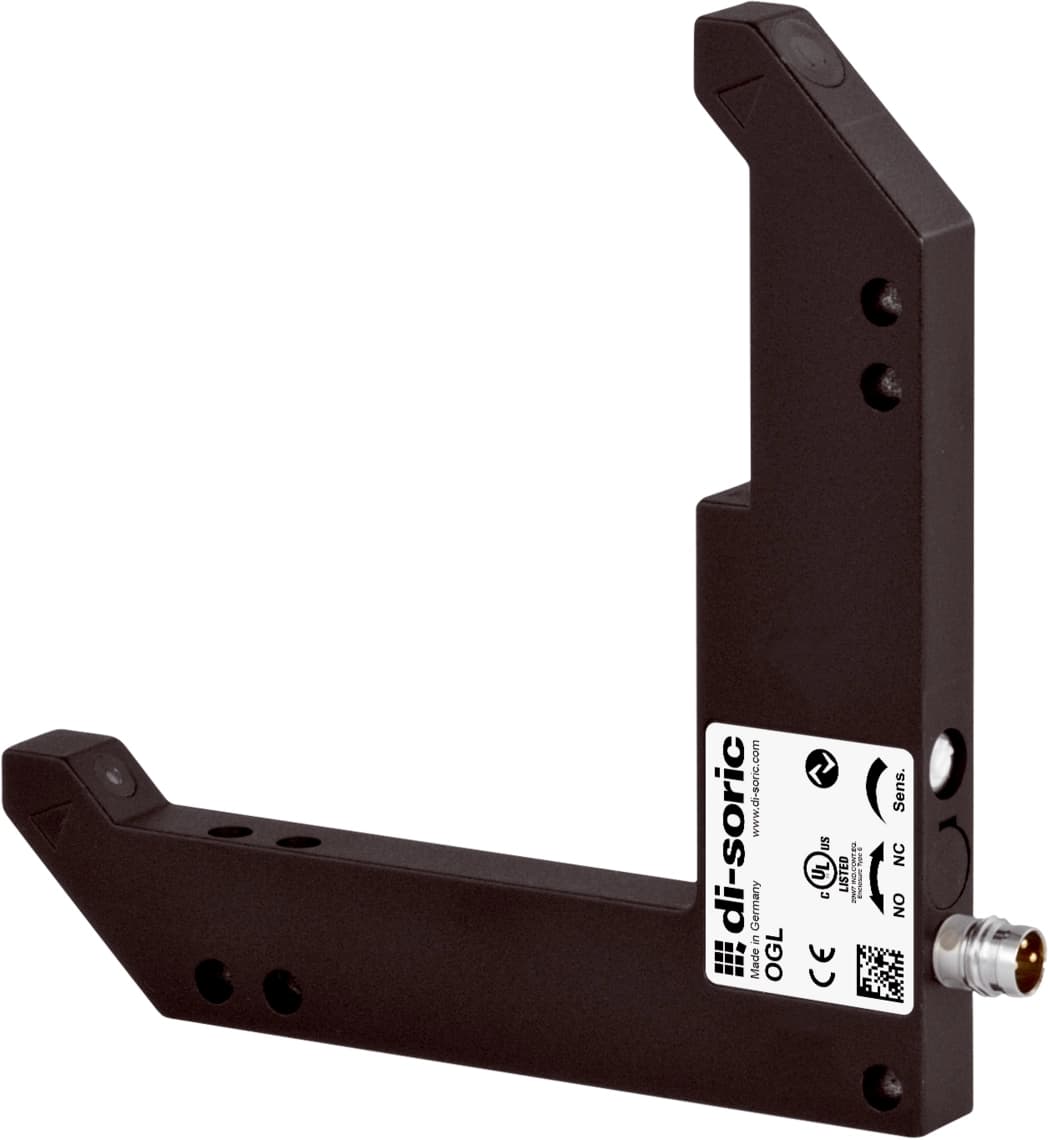

OGLP 080 G3-T3 OGLP Dirt-resistant Optical sensors

Di-soric Optical sensors Industrial Automation - OGLP 080 G3-T3 OGLP Dirt-resistant Optical sensors

OGLP 080 G3-T3 OGLP Dirt-resistant Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGLP 080 G3-T3 OGLP Dirt-resistant Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)30 mA
Insulation voltage endurance500 V
Leg length internal80/80 mm
Housing dimensions105 x 105 x 10 mm
Housing length105 mm
Housing height105 mm
Housing width10 mm
Housing materialDie-cast zinc (powder-coated)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignAngle
Switching outputPush-pull, 100 mA, NO/NC
Voltage drop (max.)1 V
InterfaceIO-Link
Light sourceLED
ColorInfrared
Wavelength860 nm
ModulationClocked
Ambient light immunity25 kLx
Range100 mm (optical axis)
Resolution (factory setting)2 mm (POWER)
Reproducibility (factory setting)0.03 mm (POWER)
Resolution (STANDARD)0.3 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.2 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)2 mm
Reproducibility (POWER)0.03 mm
Resolution (SPEED)0.5 mm
Reproducibility (SPEED)0.02 mm
Sensitivity adjustmentPotentiometer
Switching frequency (factory setting)200 Hz (POWER)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)200 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
