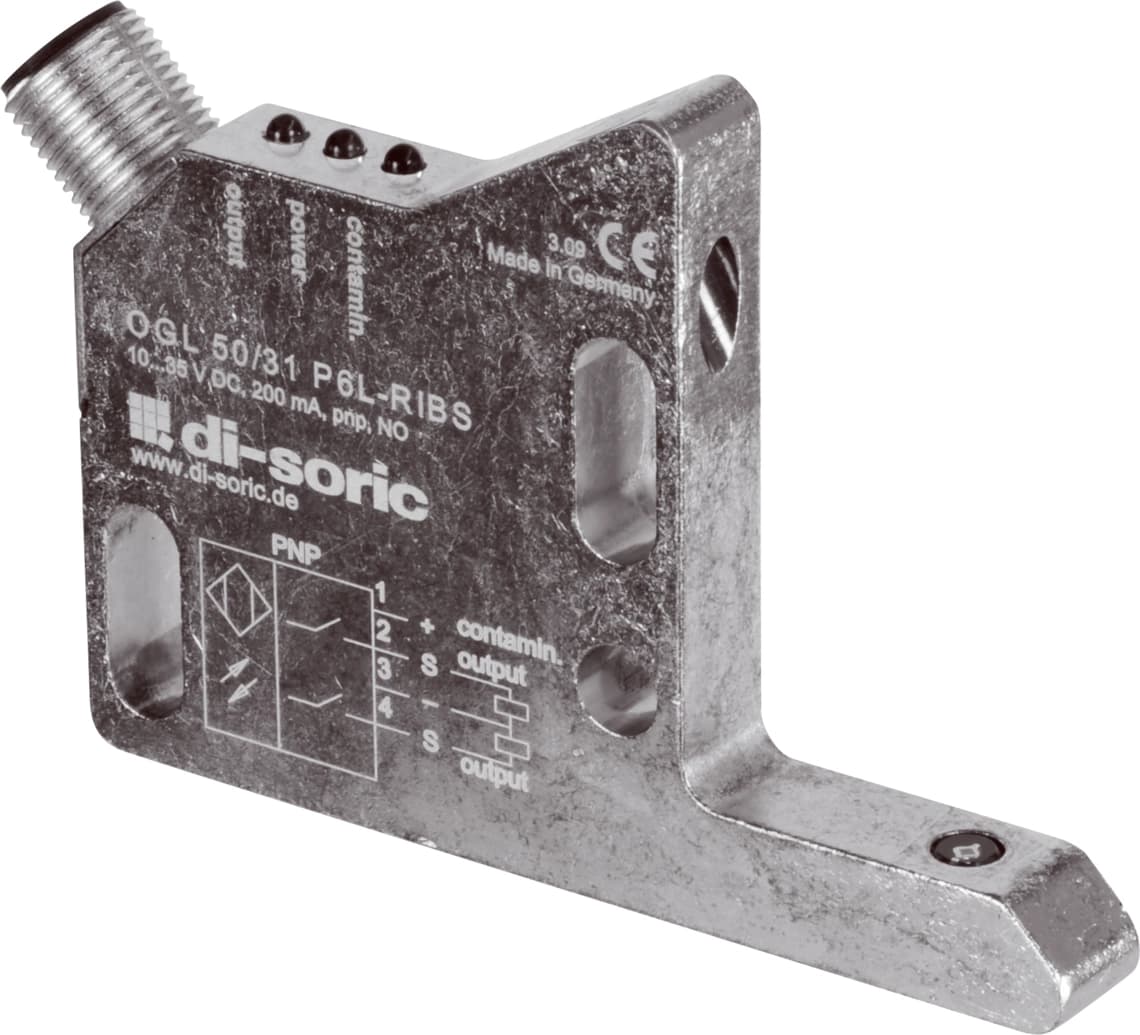

OGL 50/31 P6L-RIBS OGLP Dirt-resistant Optical sensors

Di-soric Optical sensors Industrial Automation - OGL 50/31 P6L-RIBS OGLP Dirt-resistant Optical sensors

OGL 50/31 P6L-RIBS OGLP Dirt-resistant Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGL 50/31 P6L-RIBS OGLP Dirt-resistant Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC (Supply Class 2)
No-load current (max.)45 mA
Insulation voltage endurance500 V
Leg length internal50/31 mm
Housing dimensions60 x 83 x 10 mm
Housing length83 mm
Housing height60 mm
Housing width10 mm
Housing materialDie-cast zinc
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignAngle
CharacteristicsHigh transmit power and dirt penetration
Switching outputpnp, 200 mA, NO
Voltage drop (max.)2 V
Contamination outputpnp, 200 mA
Light sourceLED
ColorRed
Wavelength660 nm
ModulationClocked
Ambient light immunity5 kLx
Range40 mm (optical axis)
Sensitivity adjustmentno setting elements
Switching frequency200 Hz
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVK …
