OGL 121 G3-T3 OGL Optical sensors

Name: OGL 121 G3-T3 OGL Optical sensors
Brand: Di-soric
SKU: ogl-121-g3-t3-ogl-optical-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGL 121 G3-T3 OGL Optical sensors

Description

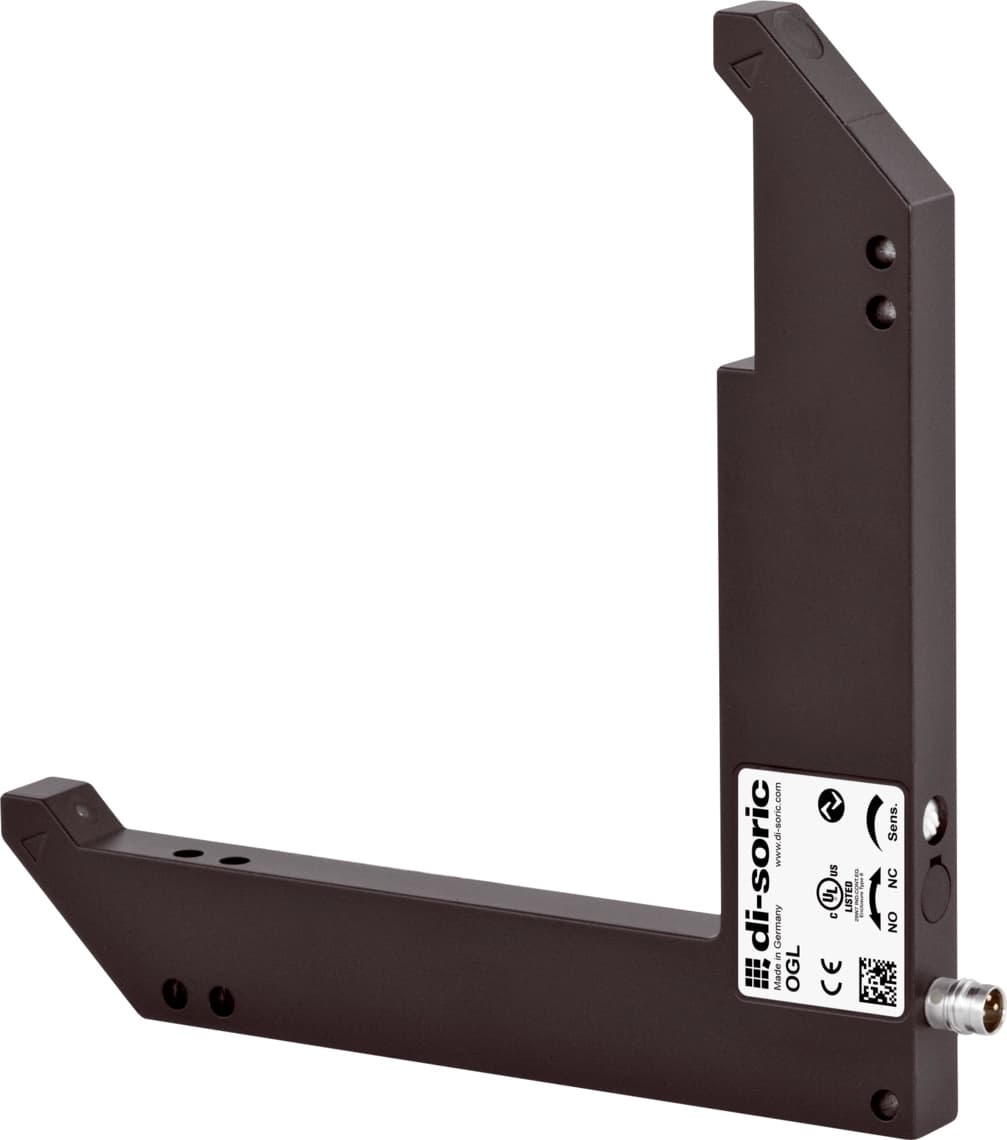

Angled light barrier OGL with LED

OGL 121 G3-T3
Article Number: 210628

The OGL angled light barrier offers unsurpassed performance and can be operated with a potentiometer. The OGL offers high resolution and reproducibility with outstanding speed. It is operated intuitively using potentiometers or IO-Link. Four preset operating modes make ideal adaptation to the application possible, and simultaneously, IO-Link offers important advantages in configuration and diagnosis.
4 operating modes as an IO-Link parameter
Switch-on/off delay as an IO-Link parameter
Diagnostics with IO-Link
Metal casing
Sensitivity is adjustable
High switching frequency
Light/dark switching
Bright ring LED
High protection type

Collapse all

Service voltage10 … 30 V DC (Supply Class 2)

No-load current (max.)40 mA

Insulation voltage endurance500 V

Leg length internal120/120 mm

Housing dimensions150 x 150 x 12 mm

Housing length150 mm

Housing height150 mm

Housing width12 mm

Housing materialDie-cast zinc (powder-coated)

MaterialMineral glass (Optics)

Protection classIII, operation on protective low voltage

ApprovalsUL

Operating principleOptical

Evaluationdigital

DesignAngle

Switching outputPush-pull, 100 mA, NO/NC, switchable

Voltage drop (max.)1 V

InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)

Light sourceLED

ColorRed

Wavelength660 nm

ModulationClocked

Ambient light immunity20 kLx

Range158 mm (optical axis)

Resolution (factory setting)0.5 mm (STANDARD)

Reproducibility (factory setting)0.03 mm (STANDARD)

Resolution (STANDARD)0.5 mm

Reproducibility (STANDARD)0.03 mm

Resolution (HIGH RESOLUTION)0.4 mm

Reproducibility (HIGH RESOLUTION)0.03 mm

Resolution (POWER)1.5 mm

Reproducibility (POWER)0.03 mm

Resolution (SPEED)0.5 mm

Reproducibility (SPEED)0.03 mm

Sensitivity adjustmentPotentiometer

Switching frequency (factory setting)5000 Hz (STANDARD)

Switching frequency (STANDARD)5000 Hz

Switching frequency (HIGH RESOLUTION)1500 Hz

Switching frequency (POWER)250 Hz

Switching frequency (SPEED)8000 Hz

Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm

Ambient temperature during operation-25 … +60 °C

Protection typeIP 67

ConnectionConnector, M8, 3-pin

Connection cableTK …
