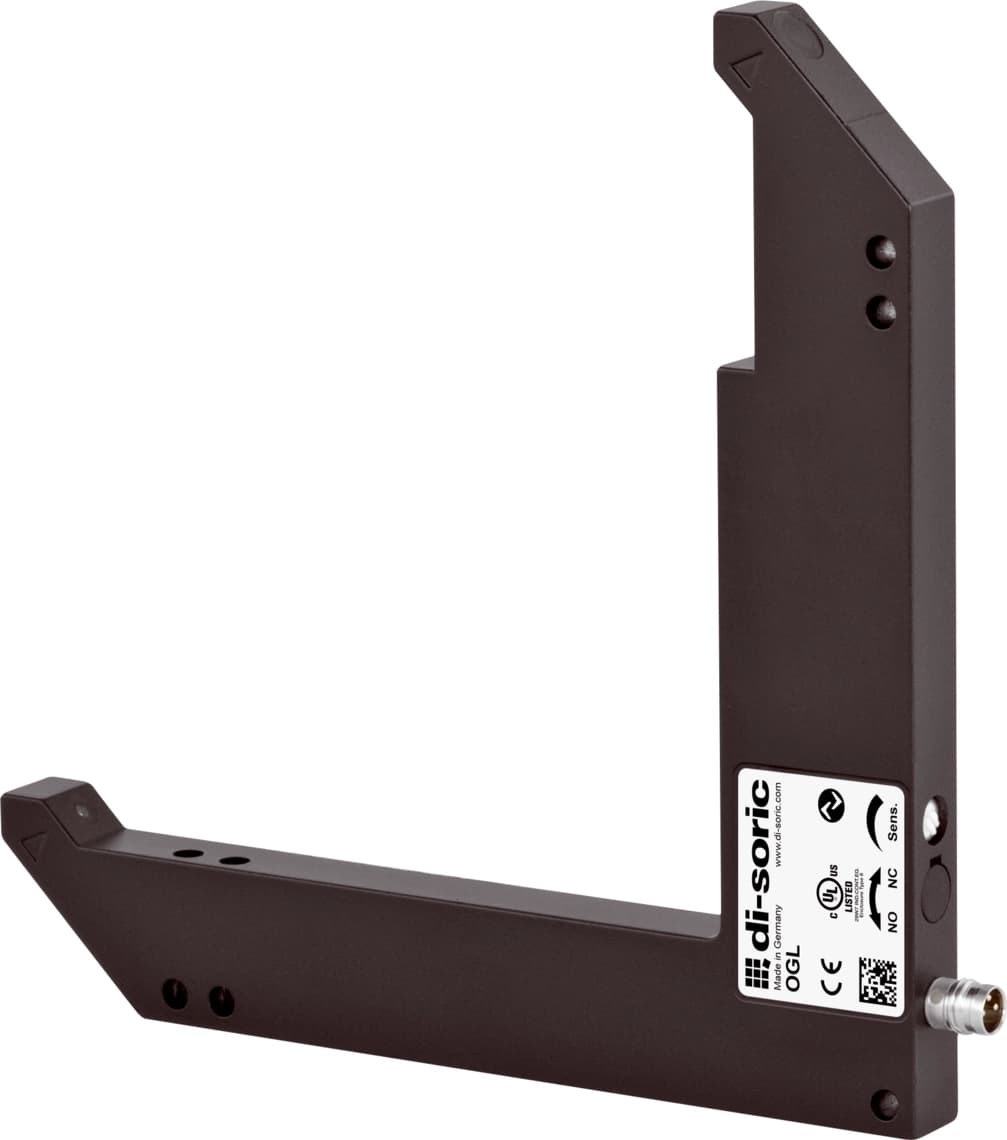

OGL 120 G3-T3 OGL Optical sensors

Di-soric Optical sensors Industrial Automation - OGL 120 G3-T3 OGL Optical sensors

OGL 120 G3-T3 OGL Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGL 120 G3-T3 OGL Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)40 mA
Insulation voltage endurance500 V
Leg length internal120/120 mm
Housing dimensions150 x 150 x 12 mm
Housing length150 mm
Housing height150 mm
Housing width12 mm
Housing materialDie-cast zinc (powder-coated)
MaterialMineral glass (Optics)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignAngle
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity20 kLx
Range158 mm (optical axis)
Resolution (factory setting)0.5 mm (STANDARD)
Reproducibility (factory setting)0.03 mm (STANDARD)
Resolution (STANDARD)0.5 mm
Reproducibility (STANDARD)0.03 mm
Resolution (HIGH RESOLUTION)0.4 mm
Reproducibility (HIGH RESOLUTION)0.03 mm
Resolution (POWER)1.5 mm
Reproducibility (POWER)0.03 mm
Resolution (SPEED)0.5 mm
Reproducibility (SPEED)0.03 mm
Sensitivity adjustmentPotentiometer
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)8000 Hz
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
