Get more information about OGL 080 G3-T3 OGL Optical sensors

Description

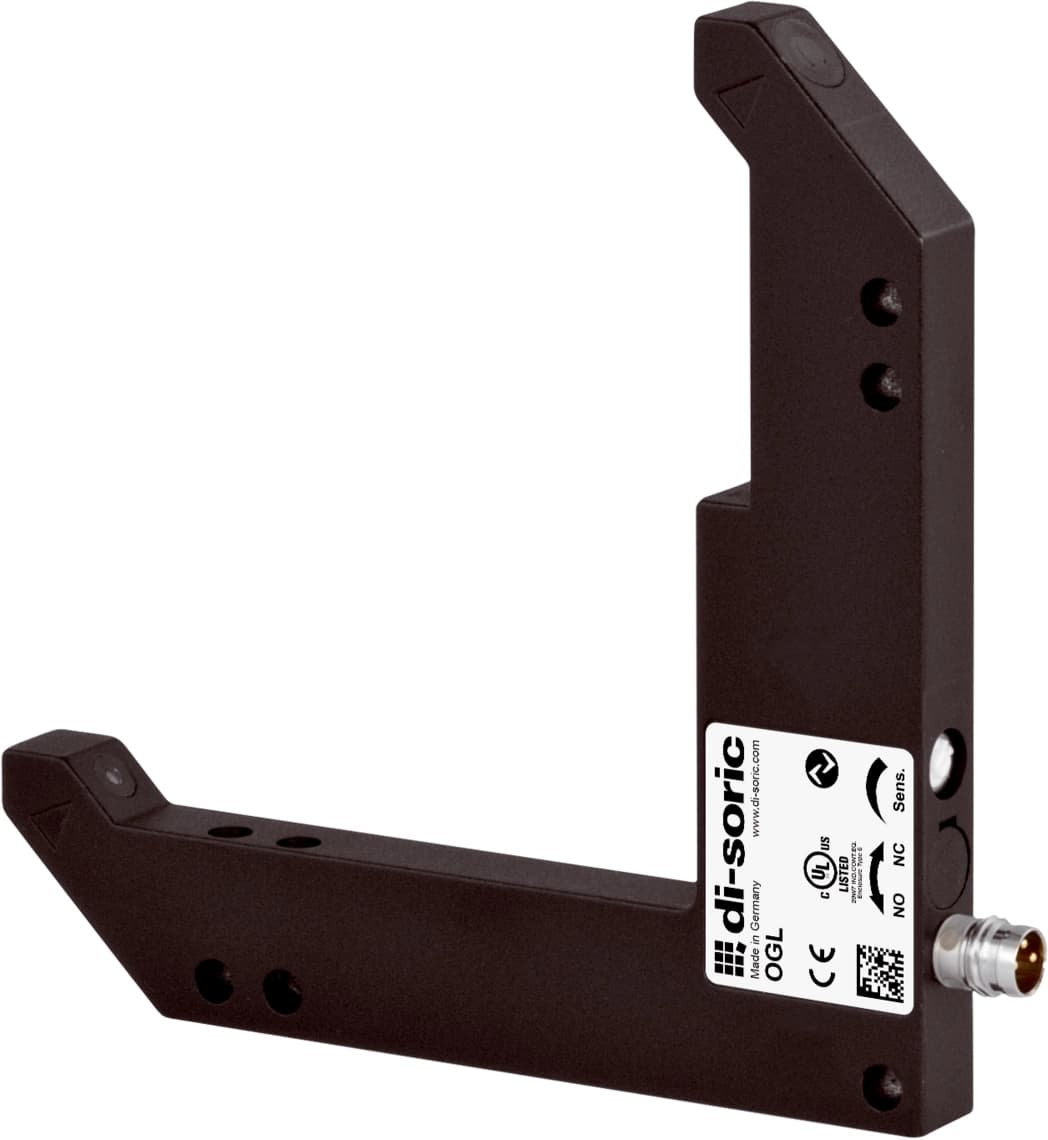

Angled light barrier OGL with LED

OGL 080 G3-T3
Article Number: 210631

The OGL angled light barrier offers unsurpassed performance and can be operated with a potentiometer. The OGL offers high resolution and reproducibility with outstanding speed. It is operated intuitively using potentiometers or IO-Link. Four preset operating modes make ideal adaptation to the application possible, and simultaneously, IO-Link offers important advantages in configuration and diagnosis.
4 operating modes as an IO-Link parameter
Switch-on/off delay as an IO-Link parameter
Diagnostics with IO-Link
Metal casing
Sensitivity is adjustable
High switching frequency
Light/dark switching
Bright ring LED
High protection type

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)30 mA
Insulation voltage endurance500 V
Leg length internal80/80 mm
Housing dimensions105 x 105 x 10 mm
Housing length105 mm
Housing height105 mm
Housing width10 mm
Housing materialDie-cast zinc (powder-coated)
MaterialMineral glass (Optics)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignAngle
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity25 kLx
Range100 mm (optical axis)
Resolution (factory setting)0.3 mm (STANDARD)
Reproducibility (factory setting)0.02 mm (STANDARD)
Resolution (STANDARD)0.3 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.2 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)1 mm
Reproducibility (POWER)0.02 mm
Resolution (SPEED)0.3 mm
Reproducibility (SPEED)0.02 mm
Sensitivity adjustmentPotentiometer
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)250 Hz
Switching frequency (SPEED)8000 Hz
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
