OES 18 FKR 8000 P3 O-M18 Standard Optical sensors

Di-soric Optical sensors Industrial Automation - OES 18 FKR 8000 P3 O-M18 Standard Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OES 18 FKR 8000 P3 O-M18 Standard Optical sensors

Description

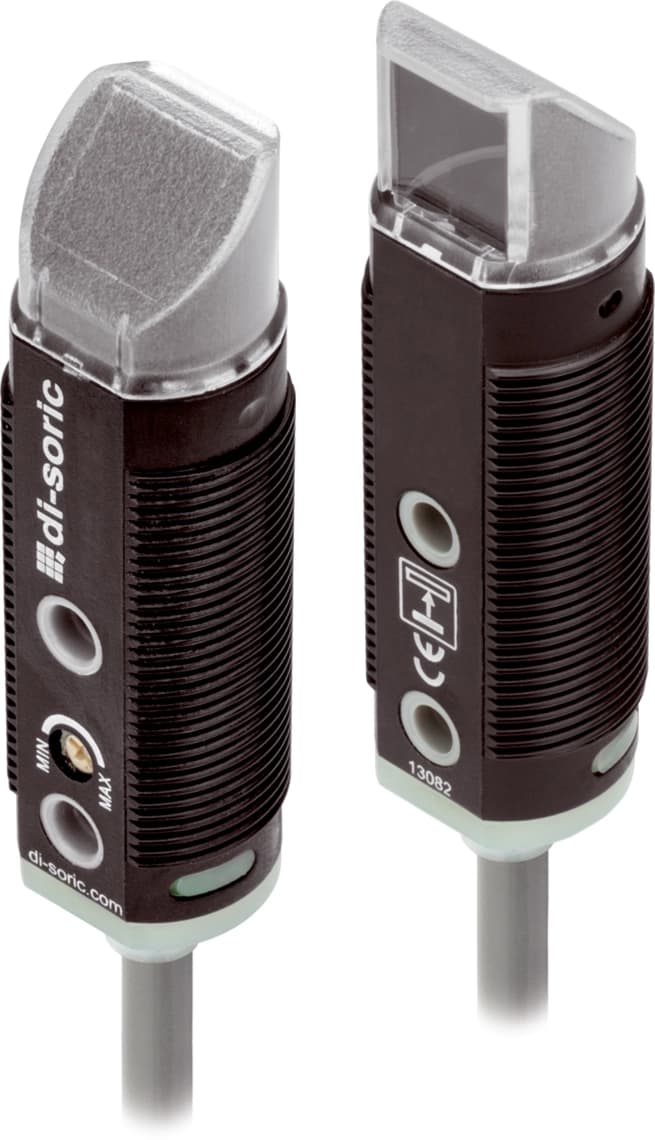

OES 18 FKR 8000 P3
Article Number: 207922

The light barriers and diffuse reflective sensors in the O-M18 Standard series are ideal devices for economical and cost-efficient applications. The sensors are alternatively available in a straight model or with 90° angled optics. The plastic or metallic housing is distinguished by its short construction.
Angled optics
Universal mounting options
Low installation depth
Sensitivity is adjustable
LED switching status display
Plastic housing

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length57.5 mm
Housing materialPlastic (ABS)
Material of cablePVC
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor
Evaluationdigital
DesignThread, Angled optics
Consisting ofTransmitter and Receiver
Switching outputpnp, 100 mA, NO/NC
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range0 … 8000 mm
Sensitivity adjustmentPotentiometer
Switching frequency333 Hz
Response time1.5 ms
Release time1.5 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionCable, 2.0 m
