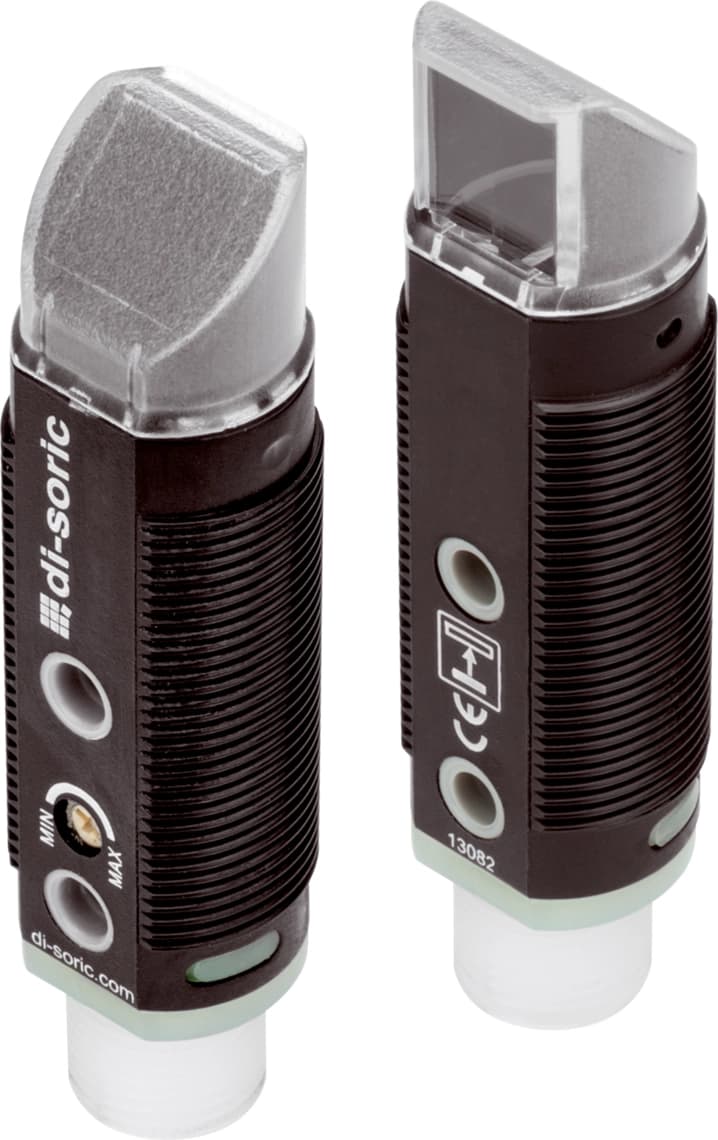

OES 18 FKR 8000 P3-B4 O-M18 Standard Optical sensors

Di-soric Optical sensors Industrial Automation - OES 18 FKR 8000 P3-B4 O-M18 Standard Optical sensors

OES 18 FKR 8000 P3-B4 O-M18 Standard Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OES 18 FKR 8000 P3-B4 O-M18 Standard Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length67.5 mm
Housing materialPlastic (ABS)
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor
Evaluationdigital
DesignThread, Angled optics
Consisting ofTransmitter and Receiver
Switching outputpnp, 100 mA, NO/NC
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range0 … 8000 mm
Sensitivity adjustmentPotentiometer
Switching frequency333 Hz
Response time1.5 ms
Release time1.5 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
