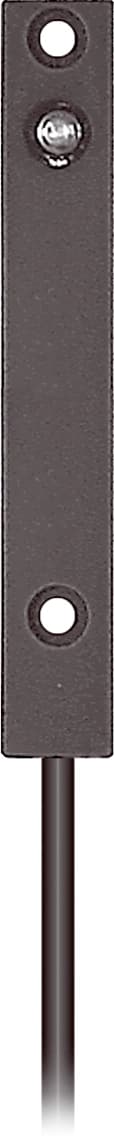

OEPQ 12 M 5000 G1L-5M OP-Q12 Optical sensors

Di-soric Optical sensors Industrial Automation - OEPQ 12 M 5000 G1L-5M OP-Q12 Optical sensors

OEPQ 12 M 5000 G1L-5M OP-Q12 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OEPQ 12 M 5000 G1L-5M OP-Q12 Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)40 mA
Housing dimensions82 x 12 x 12 mm
Housing length82 mm
Housing height12 mm
Housing width12 mm
Housing materialAluminum (Anodized)
Material of cablePVC
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, receiver
Evaluationdigital
DesignCuboid design
CharacteristicsHigh transmit power and dirt penetration
Consisting ofReceiver
Switching outputPush-pull, 200 mA, NC
Ambient light immunity15 kLx Sunlight, 2 kLx Clocked light
Range0 … 5000 mm (dependent on the transmitter)
Sensitivity adjustmentno setting elements
Switching frequency500 Hz
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67
ConnectionCable, 5.0 m
