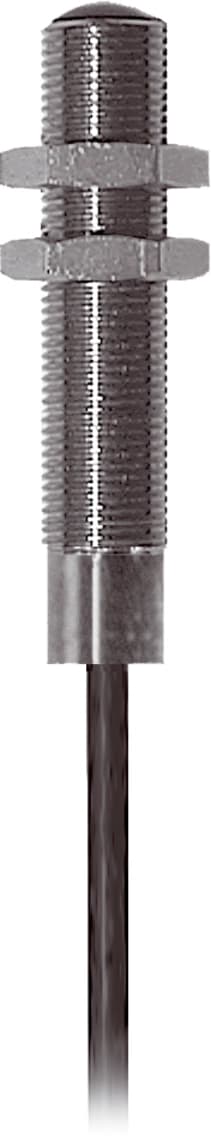

OEP 12 V 50000 G1L-5M OP-M12 Optical sensors

Di-soric Optical sensors Industrial Automation - OEP 12 V 50000 G1L-5M OP-M12 Optical sensors

OEP 12 V 50000 G1L-5M OP-M12 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OEP 12 V 50000 G1L-5M OP-M12 Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)40 mA
ThreadM12 x 1
Housing length60 mm
Housing materialStainless steel (V2A 1.4301 / AISI 304)
Material of cablePVC
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, receiver
Evaluationdigital
DesignThread
CharacteristicsHigh transmit power and dirt penetration
Consisting ofReceiver
Switching outputPush-pull, 200 mA, NC (pnp) / NO (npn)
Ambient light immunity15 kLx Sunlight, 2 kLx Clocked light
Range0 … 50000 mm (dependent on the transmitter)
Sensitivity adjustmentno setting elements
Switching frequency20 Hz
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67 / IP 68 / IP 69K
ConnectionCable, 5.0 m
