Description

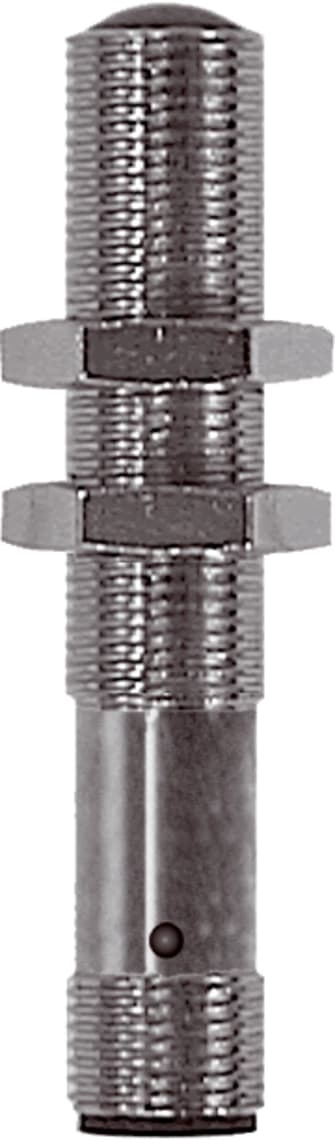

High performance light barrier OP-M12

OEP 12 V 50000 G1-IBSL
Article Number: 203749

The threaded M12 model consists of a transmitter and receiver in a compact construction and simple threaded mounting. Through the robust stainless steel housing, the systems are insensitive to vibrations and shaking and therefore do not have to be continually adjusted.
Long range
Integrated amplifier electronics
Transistor output with push-pull
High function reserve
Extremely dirt-resistant
Easy adjustment
Different designs to be combined
High protection type
Compact design

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)40 mA
ThreadM12 x 1
Housing length66 mm
Housing materialStainless steel (V2A 1.4301 / AISI 304)
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, receiver
Evaluationdigital
DesignThread
CharacteristicsHigh transmit power and dirt penetration
Consisting ofReceiver
Switching outputPush-pull, 200 mA, NC (pnp) / NO (npn)
Ambient light immunity15 kLx Sunlight, 2 kLx Clocked light
Range0 … 50000 mm (dependent on the transmitter)
Sensitivity adjustmentno setting elements
Switching frequency20 Hz
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67 / IP 68 / IP 69K
ConnectionConnector, M12, 3-pin
