OE34-IMN-PT-P4-T4 O-34 Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OE34-IMN-PT-P4-T4 O-34 Stainless steel Optical sensors

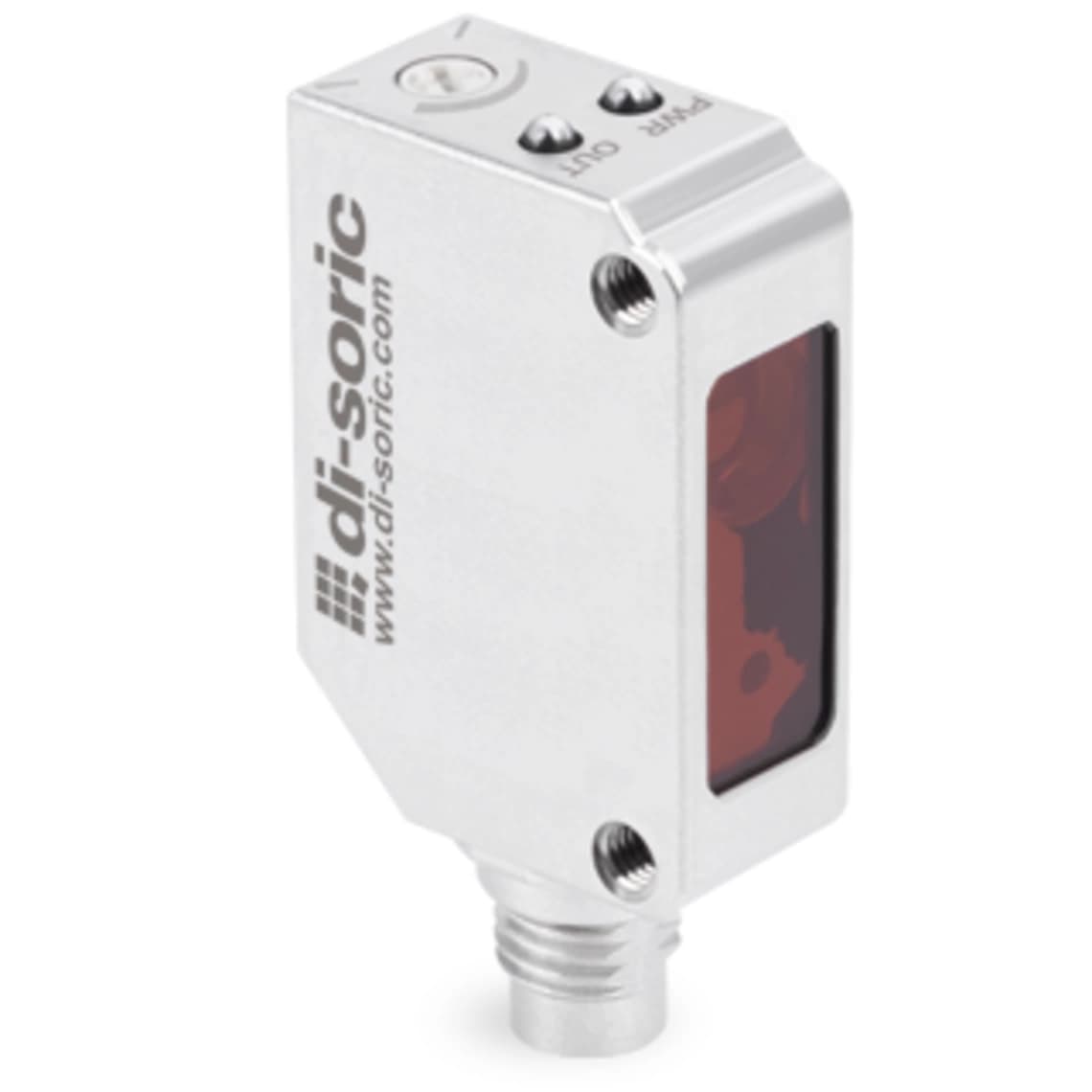

OE34-IMN-PT-P4-T4 O-34 Stainless steel Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OE34-IMN-PT-P4-T4 O-34 Stainless steel Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 25 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions32 x 21 x 11 mm
Housing length21 mm
Housing height32 mm
Housing width11 mm
Housing materialStainless steel
MaterialPlastic (Window / optics)
Weight65 g
Protection classIII
ApprovalsUL
Operating principleThrough-beam sensor
Evaluationdigital
DesignCuboid design
Consisting ofReceiver
Switching outputpnp, 100 mA, antivalent
Voltage drop (max.)2 V
Range0 … 15000 mm
Sensitivity adjustmentPotentiometer
DisplayLED green - Status, yellow - Switching output
Switching frequency500 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67 / IP 69K
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
