ODG 90 P3K-TSSL OGUZ Special designs Optical sensors

Di-soric Optical sensors Industrial Automation - ODG 90 P3K-TSSL OGUZ Special designs Optical sensors

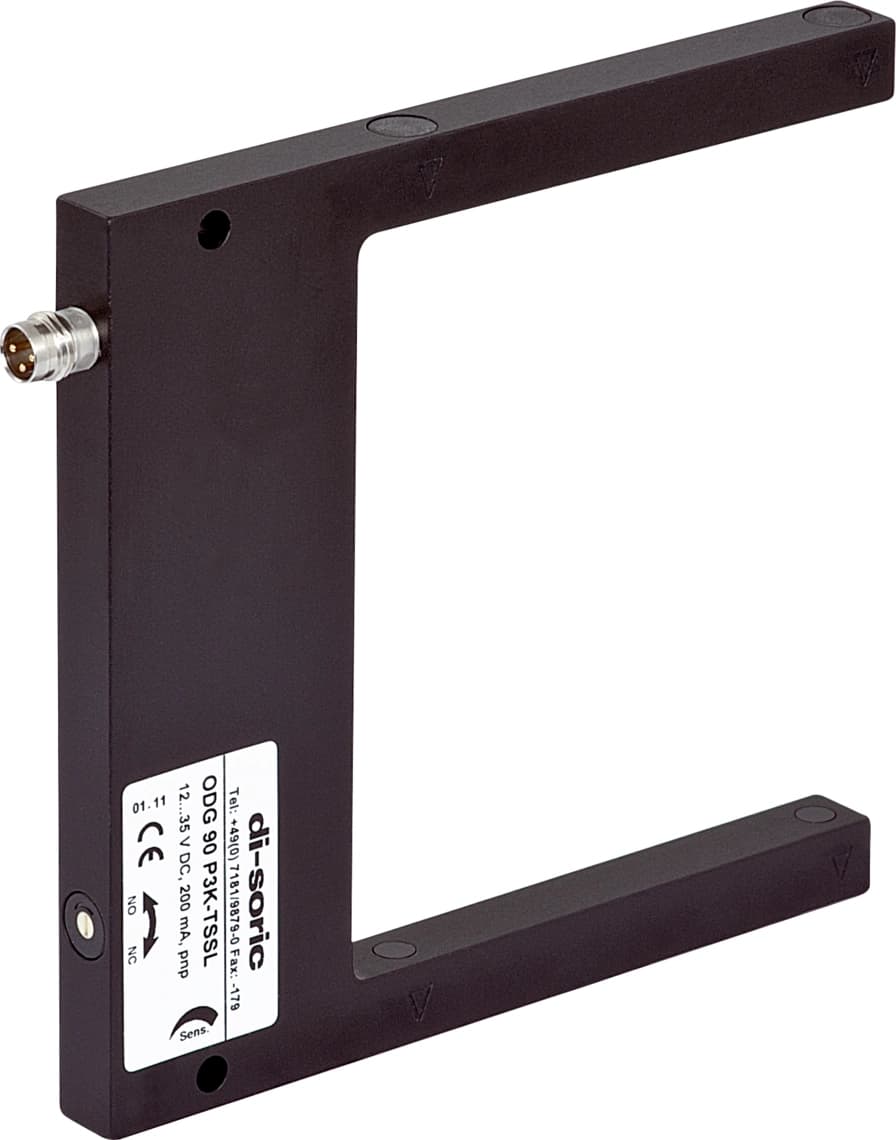

ODG 90 P3K-TSSL OGUZ Special designs Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about ODG 90 P3K-TSSL OGUZ Special designs Optical sensors

Description

Collapse all
Service voltage12 … 35 V DC
No-load current (max.)35 mA
Insulation voltage endurance500 V
Fork opening90 mm
Leg length internal80 mm
Housing dimensions110 x 115 x 10 mm
Housing length115 mm
Housing height110 mm
Housing width10 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
Operating principleOptical
Evaluationdigital, differential
DesignFork
Switching outputpnp, 200 mA, NO/NC, switchable
Voltage drop (max.)2.5 V
Light sourceLED
ColorInfrared
Modulationnon-clocked
Ambient light immunity5 kLx
ResolutionØ 0.25 mm
Switching hysteresis (max.)0.2 mm
Reproducibility0.01 mm
Sensitivity adjustmentPotentiometer
Switching frequency5000 Hz
Ambient temperature during operation0 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
