OBSR 60 M 30 G8-T4 Potentiometer Optical sensors

Di-soric Optical sensors Industrial Automation - OBSR 60 M 30 G8-T4 Potentiometer Optical sensors

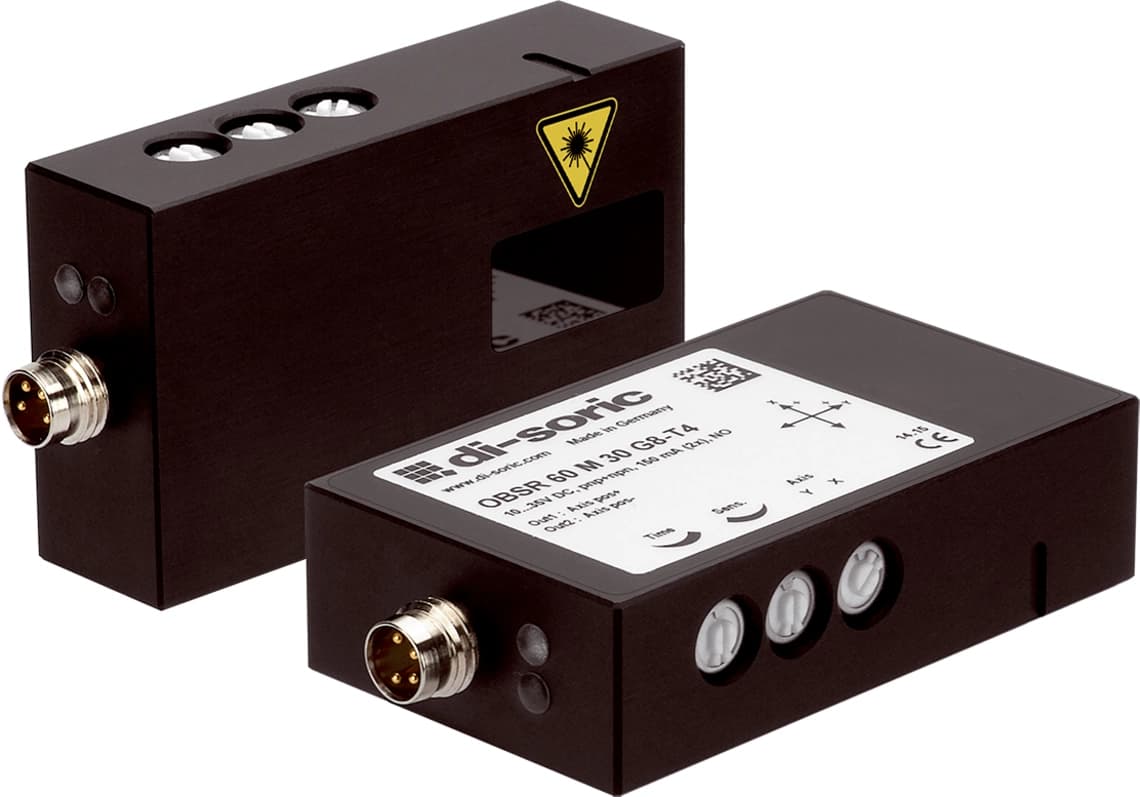

OBSR 60 M 30 G8-T4 Potentiometer Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OBSR 60 M 30 G8-T4 Potentiometer Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Housing materialAluminum (Black, Anodized)
Material window / opticsPMMA
Protection classIII, operation on protective low voltage
Operating principleOptical
Evaluationdigital
DesignCuboid design
CharacteristicsDetection of direction, X- or Y-axis switchable
Switching outputPush-pull (2x), 150 mA
Voltage drop (max.)2.5 V
Pulse stretching1 … 1000 ms adjustable
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorInfrared
Wavelength850 nm (Pp < 0,77 mW t = cw-Laser)
Light spot sizeØ 2 mm
Ambient light immunity5 kLx
Switching distance20 … 40 mm
Switching hysteresis (max.)Fixed 16 % max. 0.1 m/s
Sensitivity adjustmentPotentiometer
DisplayLED (2x) yellow - Switching output
Speed of parts (max.)5 m/s (material-dependent)
Response time10 ms
Ambient temperature during operation+5 … +45 °C
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK …
