MB-RGBW-701-K-B5 MB-RGBW Machine lighting

Di-soric Machine lighting Industrial Automation - MB-RGBW-701-K-B5 MB-RGBW Machine lighting

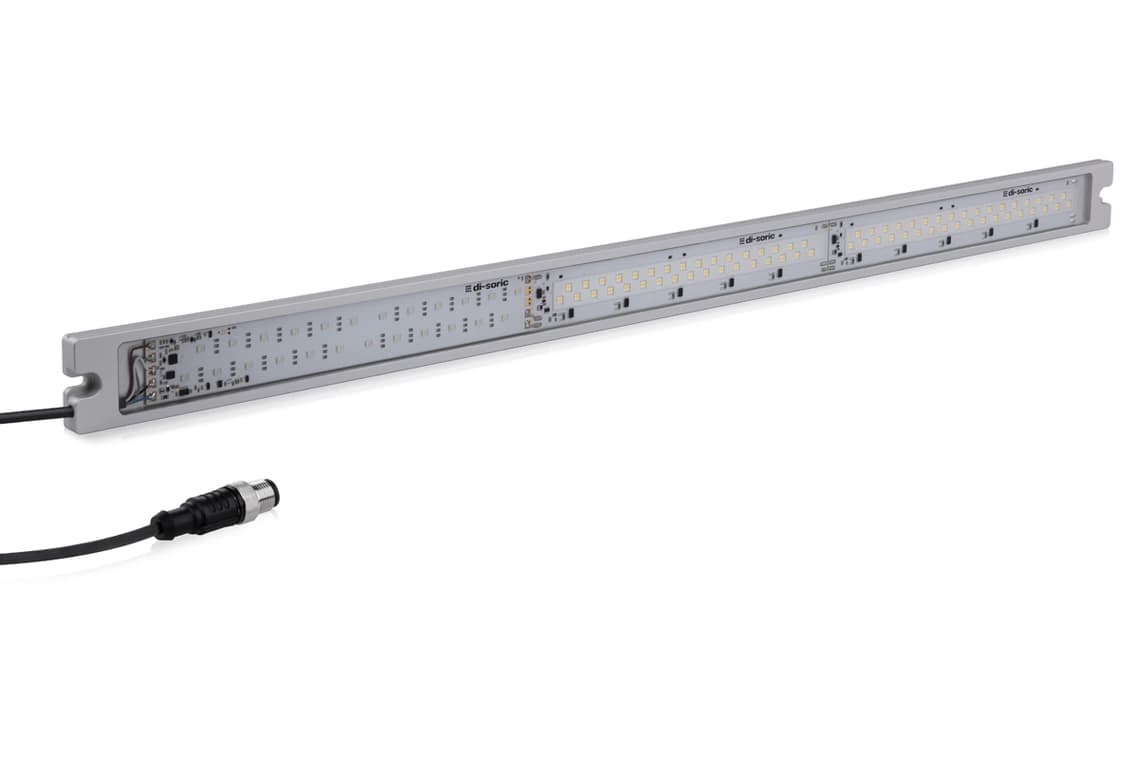

MB-RGBW-701-K-B5 MB-RGBW Machine lighting

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about MB-RGBW-701-K-B5 MB-RGBW Machine lighting

Description

Collapse all
Service voltage24 V DC (± 5%, Supply Class 2)
Internal power consumption1100 mA (24 V DC)
Power< 26.4 W (24 V DC)
Inverse polarity protectionYes
CascadableNot cascadable
Illuminated area660 x 30 mm
Housing materialAluminum (natural, Anodized)
MaterialPU, crystal clear (Window)
Weight550 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting with signal lighting element
Product seriesMB-RGBW
Operation modesRGB: constant, blinking, flashing
Light intensity can be adjustedRGB, 10 to 100 %, via IO-Link
Trigger input high level> 8.0 V
Trigger input low level< 5.0 V
Trigger input3 color presets: selectable via trigger 1 + 2 (White: selectable via trigger 3)
InterfaceIO-Link (V1.1, COM2 38.4 kBd, 2300 µs) for parameterization (process data)
Light sourceLED
ColorWhite (5 000 K), RGB (user-defined)
Deflection angle FWHM120°
Luminous flux2200 lm
Light intensity3.20 kLx (500.0 mm / 100 %) 1.00 kLx (1000.0 mm / 100 %)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 5-pin
Connection cableVK … /5
