MB-RGBW-481-K-B5 MB-RGBW Machine lighting

Di-soric Machine lighting Industrial Automation - MB-RGBW-481-K-B5 MB-RGBW Machine lighting
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about MB-RGBW-481-K-B5 MB-RGBW Machine lighting

Description

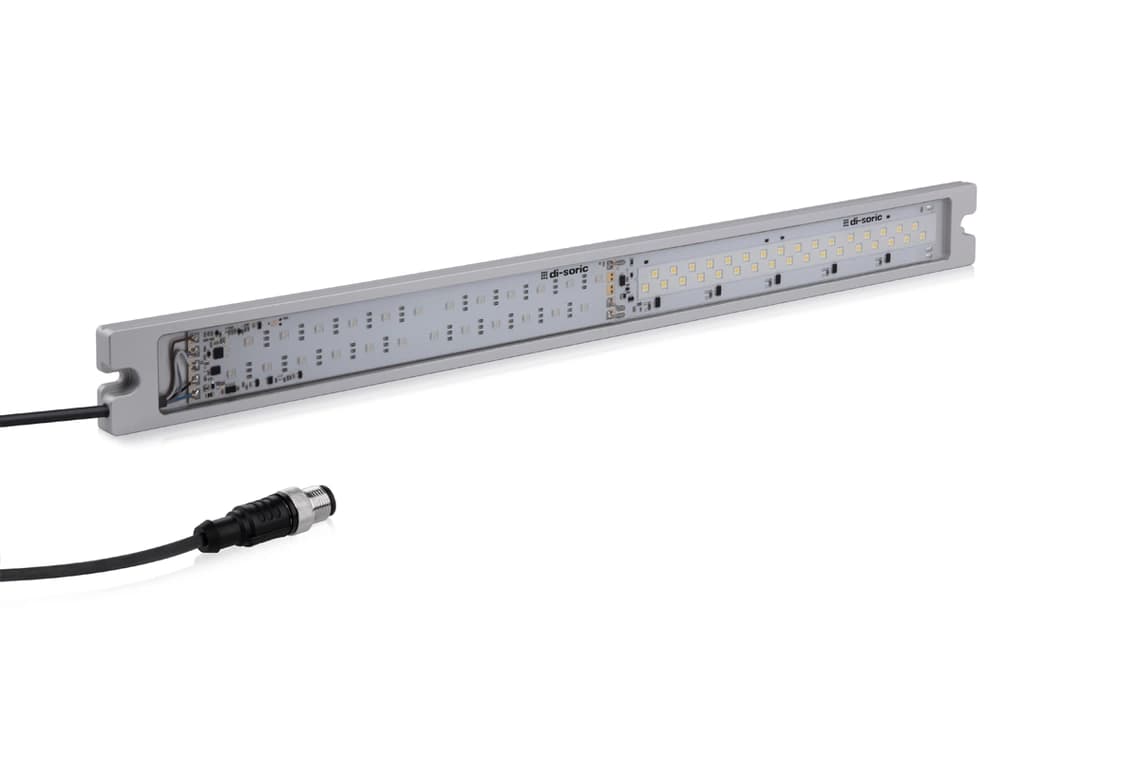

Machine lighting MB-RGBW with status indicator

MB-RGBW-481-K-B5
Article Number: 210934

These machine lighting from di-soric offer the highest light quality in white and RGB which meets the strictest requirements. An individual color parameterization using IO-Link is possible. Compact construction and load-free triggers are further features of this lighting.
High light intensity thanks to state-of-the art Power LEDs
Easy operation is also possible without IO-Link
Very good color reproduction guarantees safety at the workplace (color rendering index 85)
Large light field for optimal display of the machine status
Freely configurable functions via IO-Link
Long life thanks to intelligent thermal management
High-performance LEDs with very high light intensity ensure reliable and even illumination
Can be used immediately thanks to three color pre-sets: red - green - yellow
High protection type IP 67
Pluggable diffusion filter optionally available

Collapse all
Service voltage24 V DC (± 5%, Supply Class 2)
Internal power consumption650 mA (24 V DC)
Power< 15.6 W (24 V DC)
Inverse polarity protectionYes
CascadableNot cascadable
Illuminated area440 x 30 mm
Housing materialAluminum (natural, Anodized)
MaterialPU, crystal clear (Window)
Weight390 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting with signal lighting element
Product seriesMB-RGBW
Operation modesRGB: constant, blinking, flashing
Light intensity can be adjustedRGB
Trigger input high level> 8.0 V
Trigger input low level< 5.0 V
Trigger input3 color presets: selectable via trigger 1 + 2 (White: selectable via trigger 3)
InterfaceIO-Link (V1.1, COM2 38.4 kBd, 2300 µs) for parameterization (process data)
Light sourceLED
ColorWhite (5 000 K), RGB (user-defined)
Deflection angle FWHM120°
Luminous flux1100 lm
Light intensity1.80 kLx (500.0 mm / 100 %) 0.530 kLx (1000.0 mm / 100 %)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionPigtail, 0.3 m, M12, 5-pin
Connection cableVK … /5
