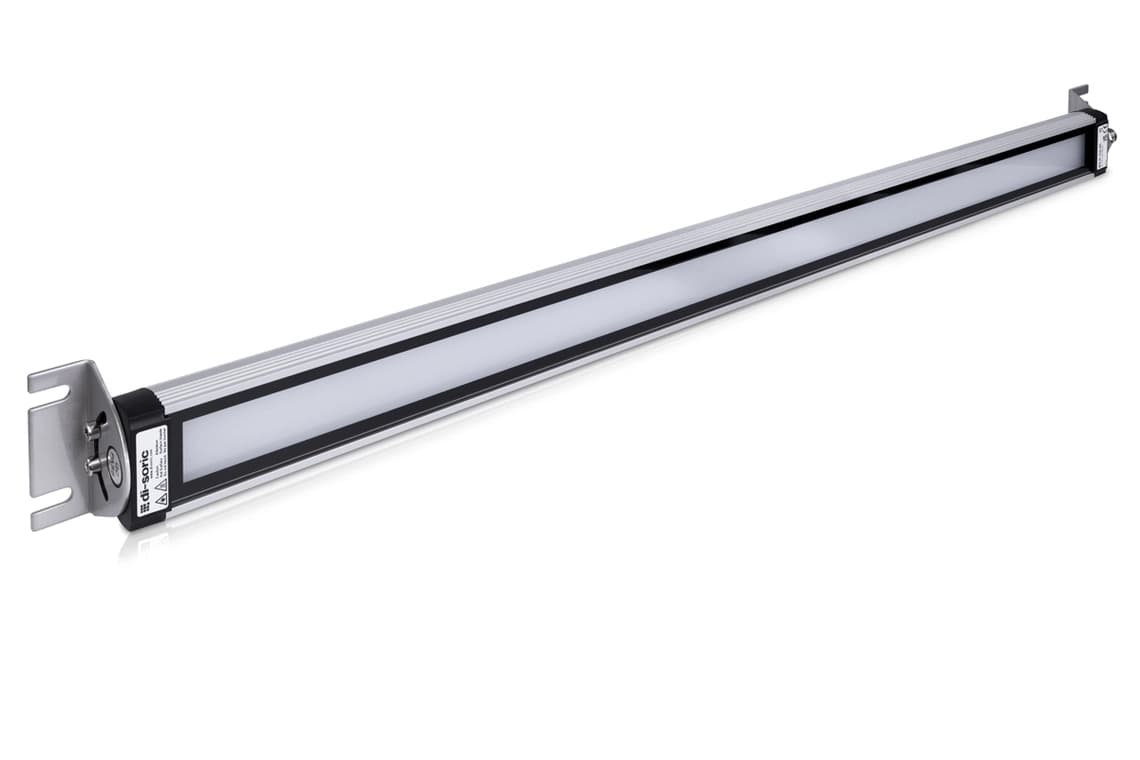

MB-R-715-B5 MB-R Machine lighting

Di-soric Machine lighting Industrial Automation - MB-R-715-B5 MB-R Machine lighting

MB-R-715-B5 MB-R Machine lighting

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about MB-R-715-B5 MB-R Machine lighting

Description

Collapse all
Service voltage24 V DC (± 10%)
Internal power consumption800 mA (24 V DC)
Power19.0 W (24 V)
Inverse polarity protectionYes
CascadableNot cascadable
Illuminated area675 x 23.5 mm
Housing materialAluminum (natural, Anodized)
MaterialTempered safety glass, diffuse (Diffusor)
Weight1030 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting, semicircle
Service life> 50.000 h (L70/B10)
Product seriesMB-R
Light sourceLED
Energy efficiency class (VO 2019/2015)F (A - G)
ColorWhite (5 000 K)
Deflection angle FWHM102° (typ.)
Luminous flux1775 lm
Light yield (VO 2019/2015)102 lm/W
Color rendering index Ra> 80
Light intensity5100 Lux (250.0 mm) 2000 Lux (500.0 mm) 680 Lux (1000.0 mm) 300 Lux (1500.0 mm) 175 Lux (2000.0 mm)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-20 … +50 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin (A-coded)
