Get more information about MB-R-540-B5 MB-R

Description

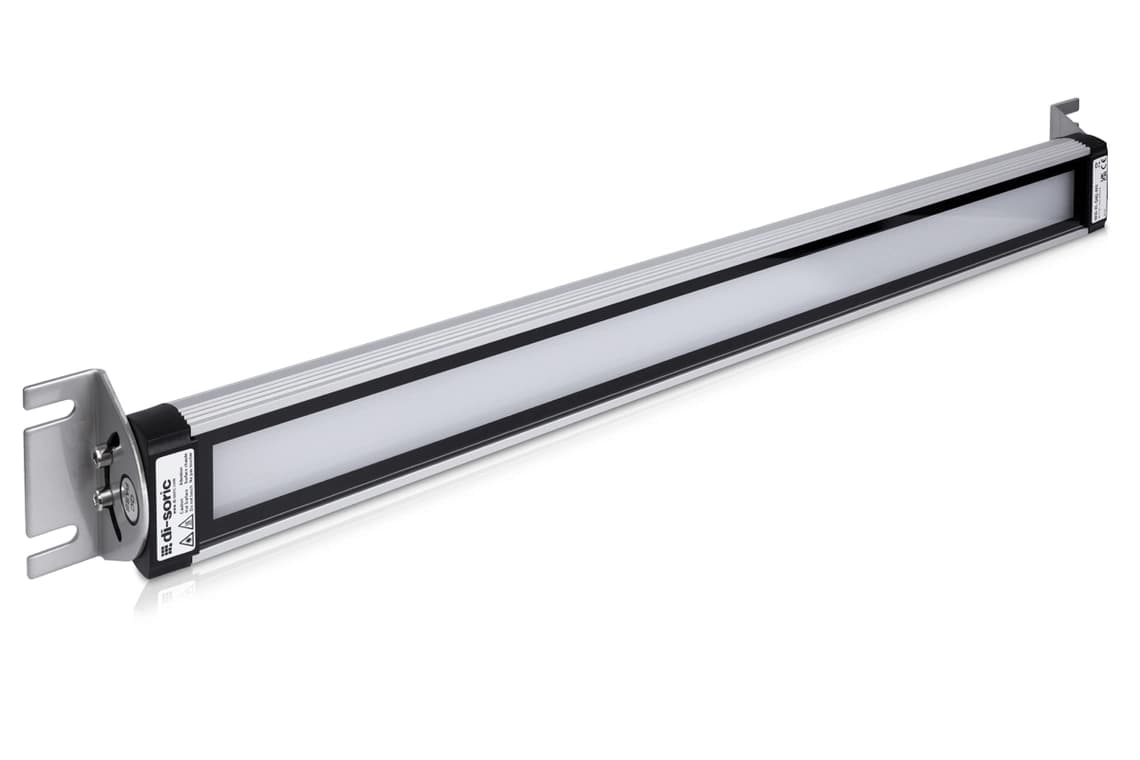

Machine lighting semicircular MB-R

MB-R-540-B5
Article Number: 213805

This robust, semicircle machine lighting is ideal for use in machines or in rough production environments due to its expanded temperature range, modern plug connection technology and hardened safety glass. The neutral white light ensures pleasant lighting conditions.

Extended temperature range -20 .. +50 °C
3 mm safety glass with opal-white glare reduction
M12 plug connector for easy wiring
Industrial quality due to IP 67
Homogeneous light distribution
Pleasant, neutral white light

Collapse all
Service voltage24 V DC (± 10%)
Internal power consumption525 mA (24 V DC)
Power12.5 W (24 V)
Inverse polarity protectionYes
CascadableNot cascadable
Illuminated area500 x 23.5 mm
Housing materialAluminum (natural, Anodized)
MaterialTempered safety glass, diffuse (Diffusor)
Weight800 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting, semicircle
Service life> 50.000 h (L70/B10)
Product seriesMB-R
Light sourceLED
Energy efficiency class (VO 2019/2015)F (A - G)
ColorWhite (5 000 K)
Deflection angle FWHM102° (typ.)
Luminous flux1250 lm
Light yield (VO 2019/2015)110 lm/W
Color rendering index Ra> 80
Light intensity4500 Lux (250.0 mm) 1500 Lux (500.0 mm) 440 Lux (1000.0 mm) 200 Lux (1500.0 mm) 110 Lux (2000.0 mm)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-20 … +50 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin (A-coded)
