MB-R-1540-B5-K5 MB-R Machine lighting

Di-soric Machine lighting Industrial Automation - MB-R-1540-B5-K5 MB-R Machine lighting
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about MB-R-1540-B5-K5 MB-R Machine lighting

Description

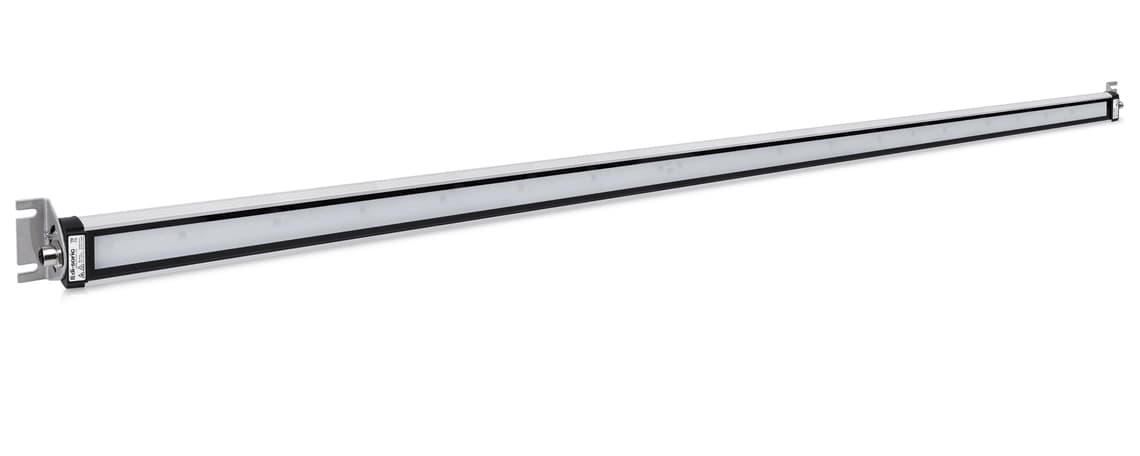

Machine lighting semicircular MB-R

MB-R-1540-B5-K5
Article Number: 214635

This robust, semicircle machine lighting is ideal for use in machines or in rough production environments due to its expanded temperature range, modern plug connection technology and hardened safety glass. The neutral white light ensures pleasant lighting conditions.

Cascadability
Easy wiring
Extended temperature range -20 .. +50 °C
M12 plug connector for easy wiring
Industrial quality due to IP 67
Homogeneous light distribution
Pleasant, neutral white light

Collapse all
Service voltage24 V DC (± 10%)
Internal power consumption1360 mA (24 V DC)
Power33.0 W (24 V)
Inverse polarity protectionYes
CascadableYes, max. 2 (with the same luminaire length)
Illuminated area1500 x 23.5 mm
Housing materialAluminum (natural, Anodized)
MaterialTempered safety glass, diffuse (Diffusor)
Weight2110 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting, semicircle
Service life> 50.000 h (L70/B10)
Product seriesMB-R
Light sourceLED
Energy efficiency class (VO 2019/2015)F (A - G)
ColorWhite (5 000 K)
Deflection angle FWHM102° (typ.)
Luminous flux3260 lm
Light yield (VO 2019/2015)109 lm/W
Color rendering index Ra> 80
Light intensity3600 Lux (250.0 mm) 1700 Lux (500.0 mm) 700 Lux (1000.0 mm) 350 Lux (1500.0 mm) 200 Lux (2000.0 mm)
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-20 … +50 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin (A-coded)
Connection 2Coupling, M12, 5-pin (A-coded)
