Description

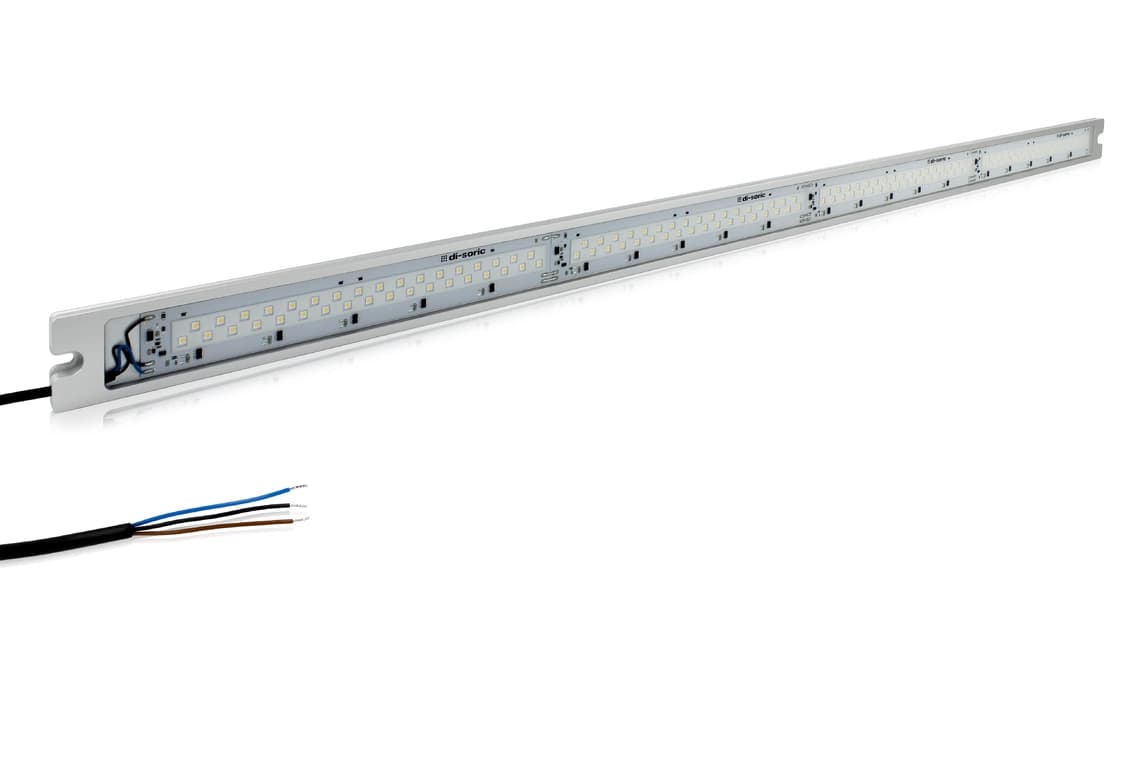

Machine lighting MB-N

MB-N-911-K
Article Number: 210203

The MB-N machine lighting has a compact design and feature load-free triggers. They offer the highest light quality in white, which meets the strictest requirements.
High light intensity thanks to state-of-the art Power LEDs
Very good color reproduction guarantees safety at the workplace (color rendering index 85)
Long life thanks to intelligent thermal management
High-performance LEDs with very high light intensity ensure reliable and even illumination
High protection type IP 67
Trigger input for external control
Dimmable via PWM signal
Magnetic holder set available as an option
Adjustable mounting angle optionally av

Collapse all
Service voltage24 V DC (± 5%, Supply Class 2)
Internal power consumption1800 mA (24 V DC)
Power43.2 W (24 V)
Inverse polarity protectionYes
CascadableNot cascadable
Illuminated area870 x 30 mm
Housing materialAluminum (natural, Anodized)
MaterialPU, crystal clear (Window)
Weight750 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Free group
ApprovalsUL
ModelMachine lighting
Product seriesMB-N
Trigger input high level> 8.0 … 25.2 V
Trigger input low level< 5.0 V
Light sourceLED
Energy efficiency class (VO 2019/2015)E (A - G)
ColorWhite (5 000 K)
Deflection angle FWHM120°
Luminous flux4400 lm
Color rendering index Ra85
Light intensity4.40 kLx (500.0 mm / 100 %) 1.60 kLx (1000.0 mm / 100 %)
On-delay time (Trig.)0.050 ms
Switch off delay (Trig.)0.050 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation0 … +40 °C
Protection typeIP 67
ConnectionCable, 3.0 m, 3-pin (flying leads), 3 x 0.34 mm²
