LTV 51 M 600 P3K-IBS O-50 Metal Optical sensors

Di-soric Optical sensors Industrial Automation - LTV 51 M 600 P3K-IBS O-50 Metal Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LTV 51 M 600 P3K-IBS O-50 Metal Optical sensors

Description

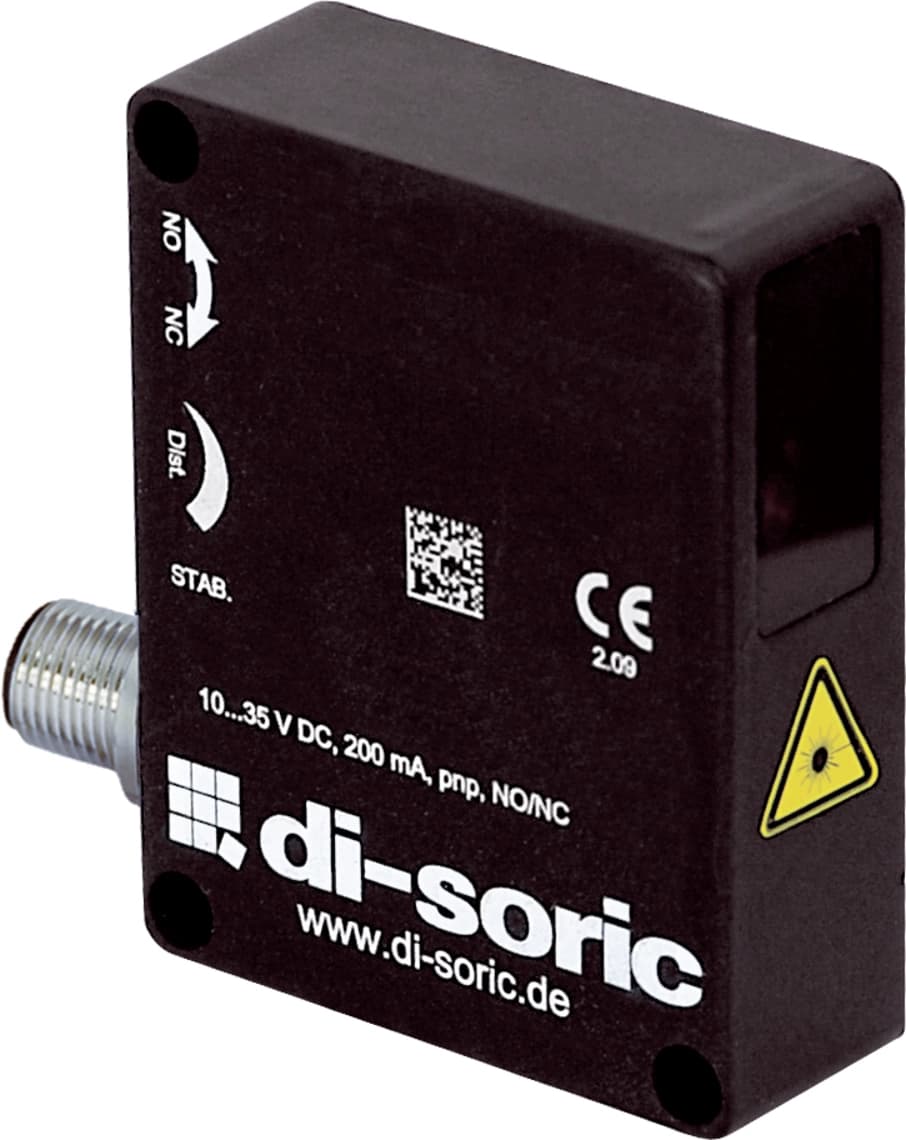

LTV 51 M 600 P3K-IBS
Article Number: 204056

The robust and highly efficient light barriers in the O-50 Metal series work with visible red light LEDs or with laser light that is safe for the eye (laser class 1). They are robust and have a metallic housing and metallic plug. The sensors have maximum functional reserve and are used for long ranges.
Red-light laser, with small laser spot
4-turn potentiometer
Functional reserve indicator/contamination indicator
Bright LED
Light/dark switching

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Housing dimensions50 x 40 x 15 mm
Housing length40 mm
Housing height50 mm
Housing width15 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPMMA (Window)
Protection classIII
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignCuboid design
Switching outputpnp, 200 mA, NO/NC, switchable
Voltage drop (max.)2 V
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 1.8 mW t = 8 µs)
ModulationClocked
Light spot sizeØ 1.5 mm
Ambient light immunity5 kLx
Range100 … 600 mm
Switching hysteresis (max.)10 %
Reproducibility< 2 %
Sensitivity adjustmentPotentiometer
Switching frequency500 Hz
Ambient temperature during operation-10 … +50 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
