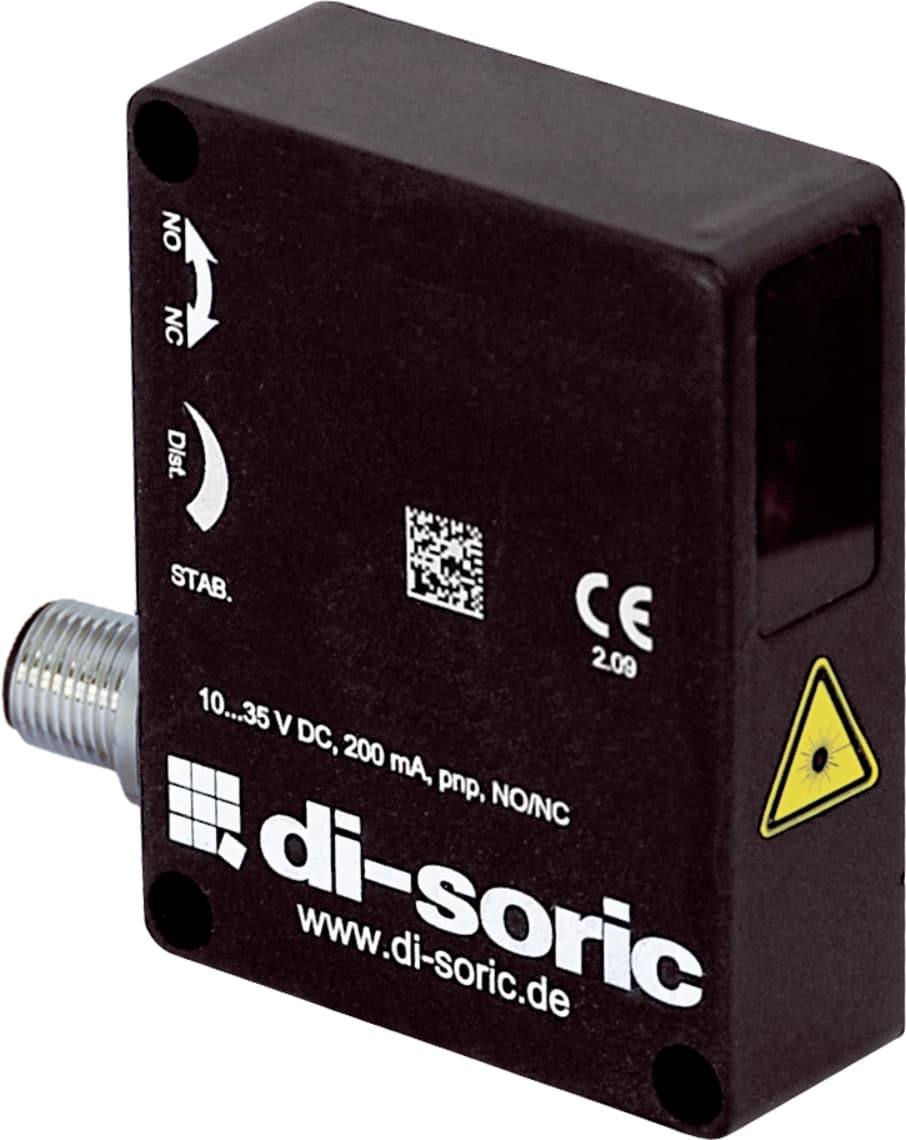

LRV 51 M 2000 P3K-IBS O-50 Metal Optical sensors

Di-soric Optical sensors Industrial Automation - LRV 51 M 2000 P3K-IBS O-50 Metal Optical sensors

LRV 51 M 2000 P3K-IBS O-50 Metal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LRV 51 M 2000 P3K-IBS O-50 Metal Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)40 mA
Insulation voltage endurance500 V
Housing dimensions50 x 40 x 15 mm
Housing length40 mm
Housing height50 mm
Housing width15 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPMMA (Window)
Protection classIII
Operating principleRetroreflective sensor
Evaluationdigital
DesignCuboid design
Switching outputpnp, 200 mA, NO/NC, switchable
Voltage drop (max.)2.8 V
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 0.5 mW t = 1.6 µs)
ModulationClocked
Ambient light immunity5 kLx
Range2000 mm
Referring reflectorRL 13 x 17 mm (included)
Sensitivity adjustmentPotentiometer
Switching frequency2000 Hz
Response time2.5 ms
Release time2.5 ms
Ambient temperature during operation0 … +50 °C
Protection typeIP 67
ConnectionConnector, M12, 3-pin
Connection cableVK …
