LLRV 51 M 500 P3K-TSSL O-50 Metal Optical sensors

Di-soric Optical sensors Industrial Automation - LLRV 51 M 500 P3K-TSSL O-50 Metal Optical sensors

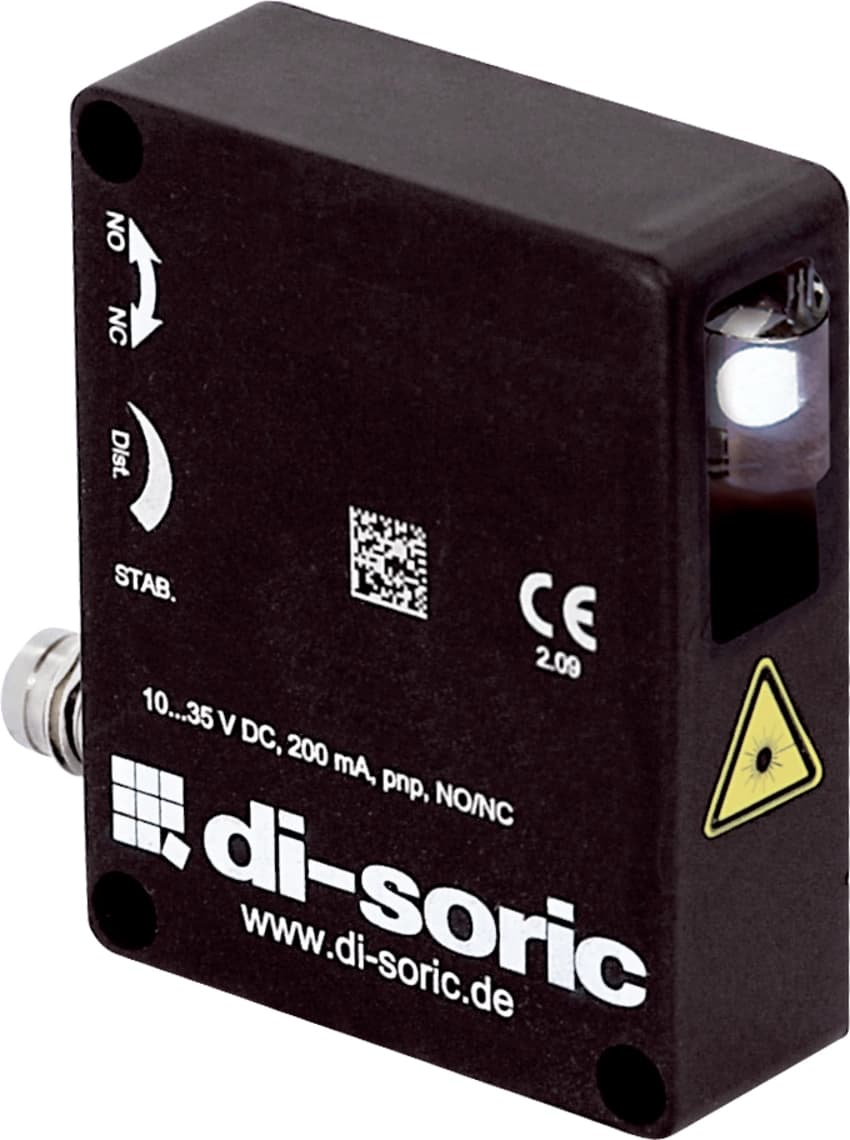

LLRV 51 M 500 P3K-TSSL O-50 Metal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LLRV 51 M 500 P3K-TSSL O-50 Metal Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Housing dimensions50 x 40 x 15 mm
Housing length40 mm
Housing height50 mm
Housing width15 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPMMA (Window)
Protection classIII
Operating principleRetroreflective sensor
Evaluationdigital
DesignCuboid design
Switching outputpnp, 200 mA, NO/NC, switchable
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 1.0 mW t = 2.7 µs)
ModulationClocked
Ambient light immunity15 kLx
Range50 … 500 mm
Resolution25.0 … 100 % (Light band cover)
Sensitivity adjustmentPotentiometer
Switching frequency750 Hz
Ambient temperature during operation+5 … +50 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
