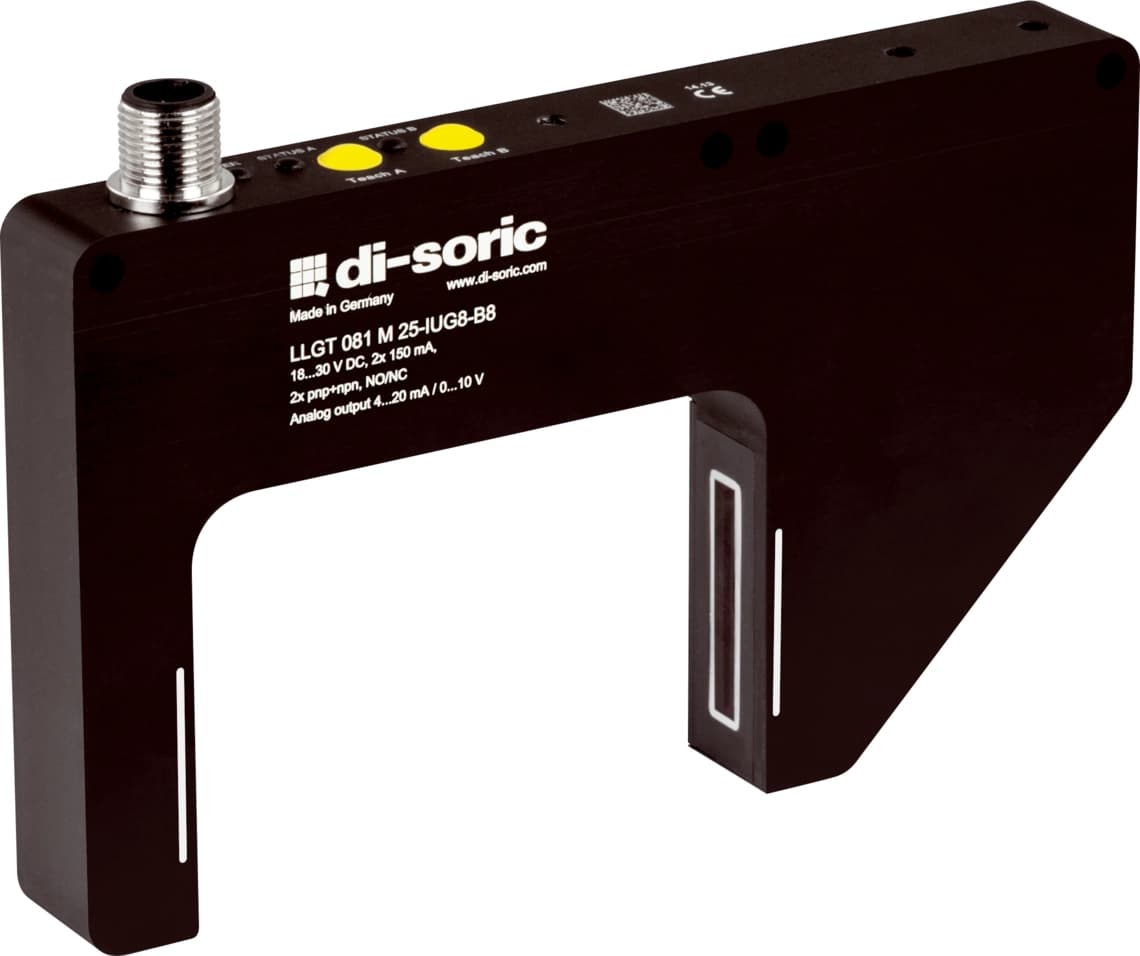

LLGT fork light barrier measuring function

LLGT 081 M 25 IUG8-B8
Article Number: 207338

The line laser fork light barrier LLGT is used for precise edge measurement and for determining diameters. This measuring, high-resolution fork light barrier can be used to reliably capture and analyze even the smallest differences in dimensions.

Current/voltage output switchable
Teach-in for measuring area and switching outputs
Remote teach option with key-lock function
Switching outputs with window mode
Large measuring area
Robust metal housing

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)70 mA (24 V DC)
Insulation voltage endurance500 V
Fork opening80 mm
Leg length internal55 mm
Housing dimensions150 x 90 x 18 mm
Housing length90 mm
Housing height150 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
MaterialFloat glass (Protection optics)
Protection classIII, operation on protective low voltage
Operating principleOptical
Evaluationdigital, analog
DesignFork
Switching outputPush-pull (2x), 150 mA, NO/NC, switchable
Voltage drop (max.)2 V
Analog output0 … 10 V, 4 … 20 mA
Permissible impedance> 1 kΩ, < 0,5 kΩ
Light sourceLaser
Laser class(IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed (Pp < 30.5 µW t = 0,7 ms)
Wavelength650 nm
ModulationClocked
Ambient light immunity5 kLx
ResolutionØ 0.02 mm
Resolution analog output0.02 mm
Smallest detectable objectØ 0.5 mm (Switching output)
Measuring range25 mm
Switching hysteresis (max.)0.1 mm
Linearity error± 0.3 %
Sensitivity adjustmentTeach button, Remote teach
DisplayLED green - Operation, yellow - Switching outputs
Measuring frequency200 Hz
Ambient temperature during operation+5 … +45 °C
Protection typeIP 67
ConnectionConnector, M12, 8-pin
Connection cableVK … /8
