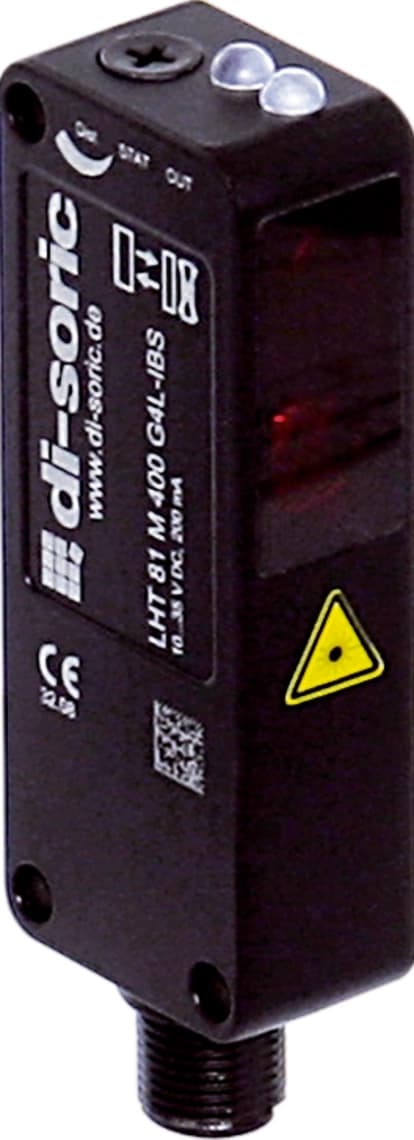

LHT 81 M 400 G6L-IBS O-81 Laser Optical sensors

Di-soric Optical sensors Industrial Automation - LHT 81 M 400 G6L-IBS O-81 Laser Optical sensors

LHT 81 M 400 G6L-IBS O-81 Laser Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LHT 81 M 400 G6L-IBS O-81 Laser Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)35 mA
Insulation voltage endurance500 V
Housing dimensions76 x 30 x 18 mm
Housing length30 mm
Housing height76 mm
Housing width18 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPolycarbonate (Window)
Protection classIII, operation on protective low voltage
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 200 mA, NO switching output, NC alarm output
Light sourceLaser
Laser classCLASS 2 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 1.8 mW t = 12 µs)
ModulationClocked
Background suppressionYes
Ambient light immunity5 kLx
Switching distance400 to 800 mm as diffuse sensor
Range40 … 400 mm
Switching hysteresis (max.)1 %
Sensitivity adjustmentPotentiometer (6-turn)
Switching frequency1000 Hz
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVK …
