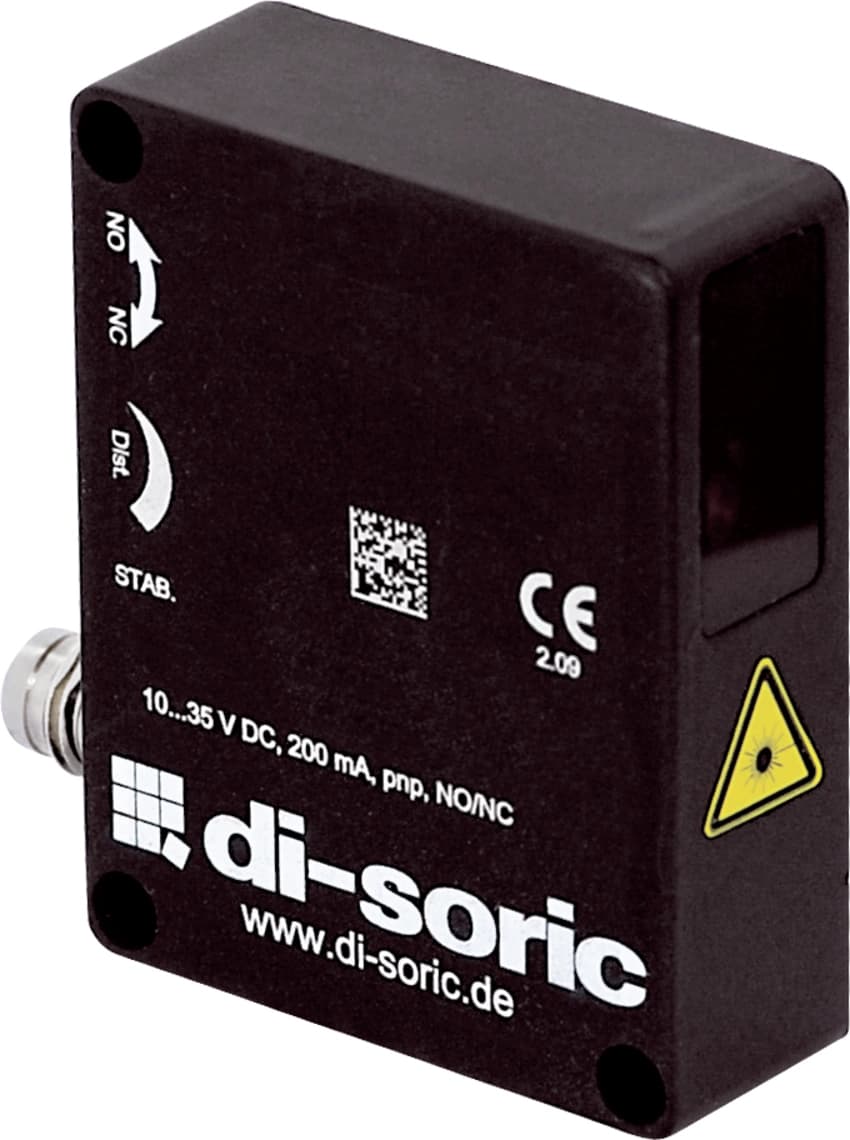

LHT 51 M 200 G3-T3 O-50 Metal Optical sensors

Di-soric Optical sensors Industrial Automation - LHT 51 M 200 G3-T3 O-50 Metal Optical sensors

LHT 51 M 200 G3-T3 O-50 Metal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LHT 51 M 200 G3-T3 O-50 Metal Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)25 mA (24 V DC)
Insulation voltage endurance500 V
Housing dimensions50 x 40 x 15 mm
Housing length40 mm
Housing height50 mm
Housing width15 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPMMA (Window)
Protection classIII
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 200 mA, NO/NC, switchable
Voltage drop (max.)2 V
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 2.6 mW t = 10 µs)
ModulationClocked
Background suppressionYes
Light spot sizeØ 1.5 mm
Ambient light immunity5 kLx
Range50 … 200 mm
Switching hysteresis (max.)6 %
Reproducibility0.5 %
Sensitivity adjustmentPotentiometer
DisplayLED green - Operation, yellow - Switching output
Switching frequency500 Hz
Ambient temperature during operation-10 … +50 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
