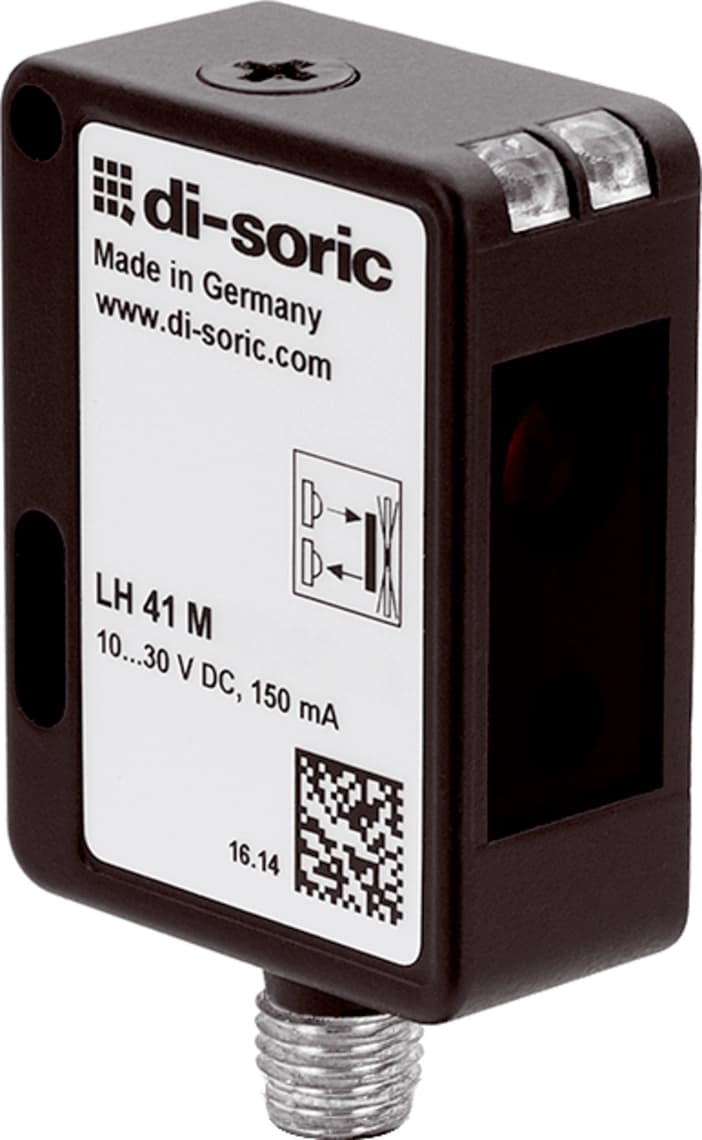

LH 41 M 350 G4L-T4 O-40E Extended Optical sensors

Di-soric Optical sensors Industrial Automation - LH 41 M 350 G4L-T4 O-40E Extended Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LH 41 M 350 G4L-T4 O-40E Extended Optical sensors

Description

LH 41 M 350 G4L-T4
Article Number: 209571

The devices in the O-40E Extended series for medium ranges have a robust metallic housing with a metallic plug and are used in the detection of standard or small parts. These light barriers detect with LED or with laser variants (laser class 1) that are safe for the eye.
Vibration-safe 10-turn adjustment for finest adjustment
Red-light laser, with small laser spot
Optical background suppression
Push-pull pnp + npn
High resolution, switching accuracy, switching frequency
Functional reserve indicator
Robust metal housing
Universal mounting

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)25 mA
Insulation voltage endurance500 V
Housing dimensions40 x 30 x 15 mm
Housing length30 mm
Housing height40 mm
Housing width15 mm
Housing materialDie-cast zinc (Black, painted)
MaterialPolycarbonate (Window)
Weight48 g
Protection classIII
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 100 mA, antivalent, NO/NC
Voltage drop (max.)2 V
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 1.6 mW t = 11.4 µs)
ModulationClocked
Background suppressionYes
Light spot sizeØ 2 mm
Ambient light immunity20 kLx
Switching distance350 to 600 mm as diffuse sensor
Range30 … 350 mm
Sensitivity adjustmentPotentiometer (10-turn)
DisplayLED green - Operation, yellow - Switching output green - Low functional reserve (flashing)
Switching frequency1000 Hz
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation-10 … +50 °C
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
