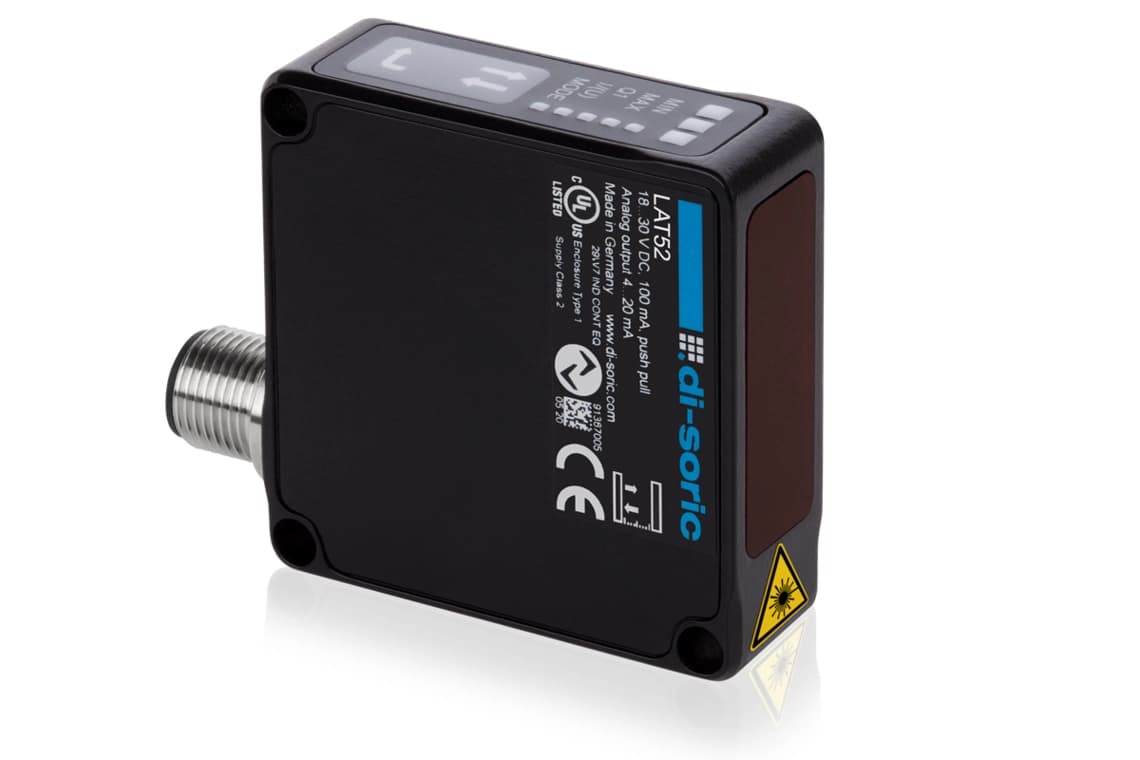

Optical distance sensor LAT 52

LAT52-80IU-B5
Article Number: 212855

The LAT-52 is a compact, universal distance sensor with a metallic housing for medium distances up to 500 mm. It is fast and is used in case of applications in the mm and sub-mm range. The LAT-52 is available in 3 different measuring ranges. The variant with a measuring range of 30 mm to 80 mm has a resolution of 0.01 mm. The small laser light spot enables the detection of small changes in distance. The LAT-52 is alternatively operated via keypad or IO-Link, and laser protection class 1 ensures complete eye safety.
IO-Link
Precisely linearized object detection
Large detection range
3 operating modes as an IO-Link parameter
Laser class 1
Red-light laser, with small laser spot
Easy to operate
Robust metal housing

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
No-load current (max.)60 mA
Insulation voltage endurance500 V
Housing dimensions51 x 51 x 17 mm
Housing length51 mm
Housing height51 mm
Housing width17 mm
Housing materialDie-cast zinc (Black, powder-coated)
Material window / opticsPlastic
Weight102 g
Protection classIII, operation on protective low voltage
ApprovalsUL
DesignCuboid design
Operation modesStandard operating modes: General applications, Speed: Quick measurement (measuring rate 1,200 Hz), Power: For dark objects
Switching outputPush-pull (1x), 100 mA, NO/NC
Voltage drop (max.)2 V
Analog output0 … 10 V, 4 … 20 mA
InterfaceIO-Link V1.1, COM2 Smart Sensor Profile
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 0.65 mW t = 4 µs)
Light spot sizeØ 0.5 mm
Measuring range30 … 80 mm (6 to 90 % remission)
Resolution0.01 mm (Mode: Standard, median value 16)
Reproducibility0.02 mm, Mode: Standard, median value 16
Linearity error± 0.05 mm (Mode: Standard, median value 16)
Sensitivity adjustmentKeypad
DisplayLED green - Status, yellow - Switching output, Red - Signal weak
Measuring frequency1000 Hz, (max. 1200 Hz in Speed sensor mode without filter)
Readiness delay (max.)300 ms
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation0 … +50 °C
Temperature drift0.04 %/K
Protection typeIP 67
ConnectionConnector, M12, 5-pin
Connection cableVK … /5
