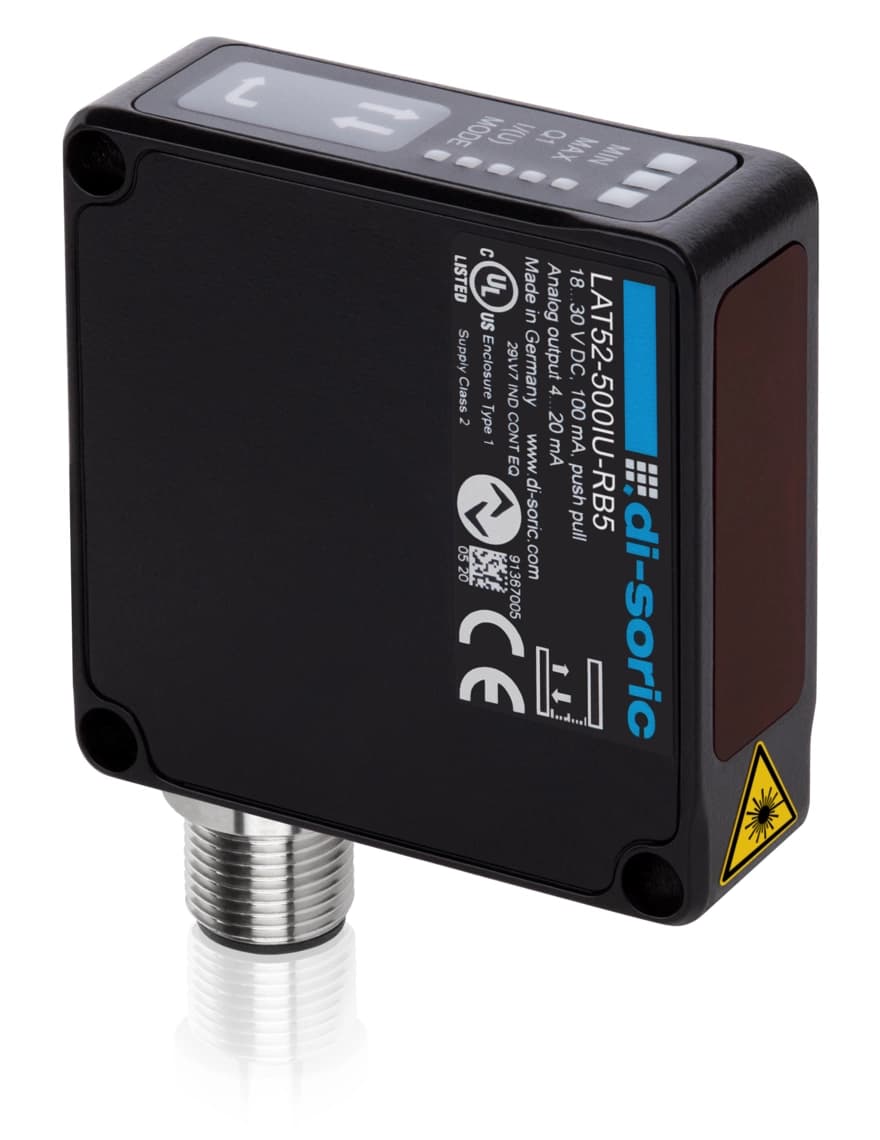

LAT52-500IU-RB5 LAT-52 Compact Optical sensors

Di-soric Optical sensors Industrial Automation - LAT52-500IU-RB5 LAT-52 Compact Optical sensors

LAT52-500IU-RB5 LAT-52 Compact Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LAT52-500IU-RB5 LAT-52 Compact Optical sensors

Description

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
No-load current (max.)60 mA
Insulation voltage endurance500 V
Housing dimensions51 x 51 x 17 mm
Housing length51 mm
Housing height51 mm
Housing width17 mm
Housing materialDie-cast zinc (Black, powder-coated)
Material window / opticsPlastic
Weight102 g
Protection classIII, operation on protective low voltage
ApprovalsUL
DesignCuboid design
CharacteristicsRadial plug connection
Operation modesStandard operating modes: General applications, Speed: Quick measurement (measuring rate 1,200 Hz), Power: For dark objects
Switching outputPush-pull (1x), 100 mA, NO/NC
Voltage drop (max.)2 V
Analog output0 … 10 V, 4 … 20 mA
InterfaceIO-Link V1.1, COM2 Smart Sensor Profile
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 0.65 mW t = 4 µs)
Light spot sizeØ 1.0 mm
Measuring range50 … 500 mm (6 to 90 % remission)
Measuring range 150 … 300 mm (6 to 90 % remission)
Measuring range 2300 … 500 mm (6 to 90 % remission)
Resolution0.3 … 0.50 mm (0.3 mm at 50 ... 300 mm, mode: standard, mean value 16, 0.5 mm at 300 ... 500 mm, mode: standard, mean value 16)
Reproducibility0.5 mm
Reproducibility0.5 mm at 50 ... 300 mm, mode: standard, mean value 16, 1.0 mm at 300 ... 500 mm, mode: standard, mean value 16
Linearity error0.22 % (± 1 mm at 50 ... 300 mm, mode: standard, mean value 16, ± 2 mm at 300 ... 500 mm, mode: standard, mean value 16)
Sensitivity adjustmentKeypad
DisplayLED green - Status, yellow - Switching output, Red - Signal weak
Measuring frequency500 Hz, (max. 1200 Hz in Speed sensor mode without filter)
Readiness delay (max.)300 ms
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation0 … +50 °C
Temperature drift0.04 %/K
Protection typeIP 67
ConnectionConnector, M12, 5-pin
Connection cableVK … /5
