Description

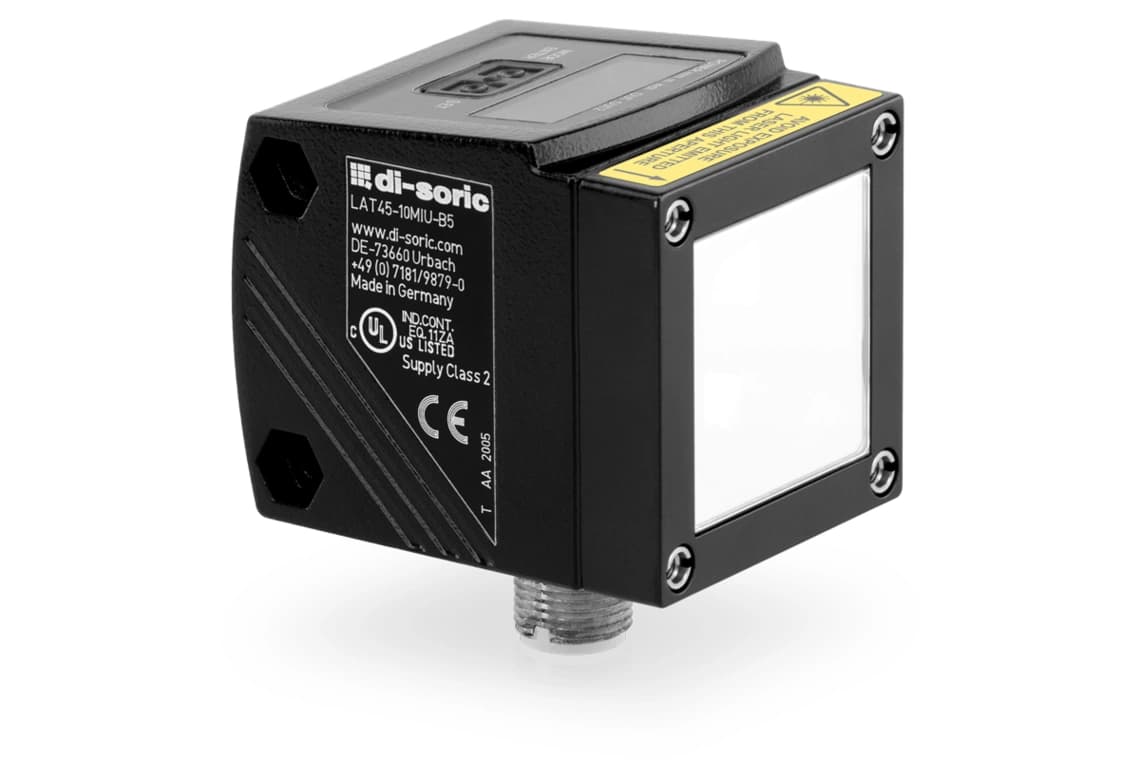

Optical distance sensor LAT 45

LAT45-10MP3-B5
Article Number: 213004

The LAT-45 features a long range of up to 10 m. The sensor is equally well suited for measuring and switching applications. The LAT-45 is operated alternatively via keypad or IO-Link, its easily legible display is used to display measured values. A good color and surface independence makes distance measurement possible on many surfaces.
IO-Link
Long range
Very good color and surface independence
Red-light laser for simple alignment
Measured values on display
Easy to operate
Robust metal housing

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
No-load current (max.)150 mA
Housing dimensions45 x 52 x 42 mm
Housing length52 mm
Housing height45 mm
Housing width42 mm
Housing materialDie-cast zinc (Black, painted)
Material window / opticsGlass
Weight309 g
Protection classIII, operation on protective low voltage
ApprovalsUL
DesignCuboid design
Switching outputpnp (1x), 200 mA, NO/NC, configurable
InterfaceIO-Link V1.1, COM2 Smart Sensor Profile
Light sourceLaser
Laser classCLASS 2 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed (Pp < 4 mW t = 1.3 ns)
Background suppression10000 … 100000 mm
Light spot size18 x 20 mm (at distance of 10 m)
Ambient light immunity100 kLx
Measuring range200 … 10000 mm (90 % remission)
Resolution1.0 mm (90% remission, measuring frequency 15 Hz)
Reproducibility4.5 ... 50 mm (90% remission, measuring frequency 15 Hz)
Sensitivity adjustmentKeypad
DisplayLED green - Status, yellow - Switching output
Switching frequency5 Hz
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin
Connection cableVK … /5
