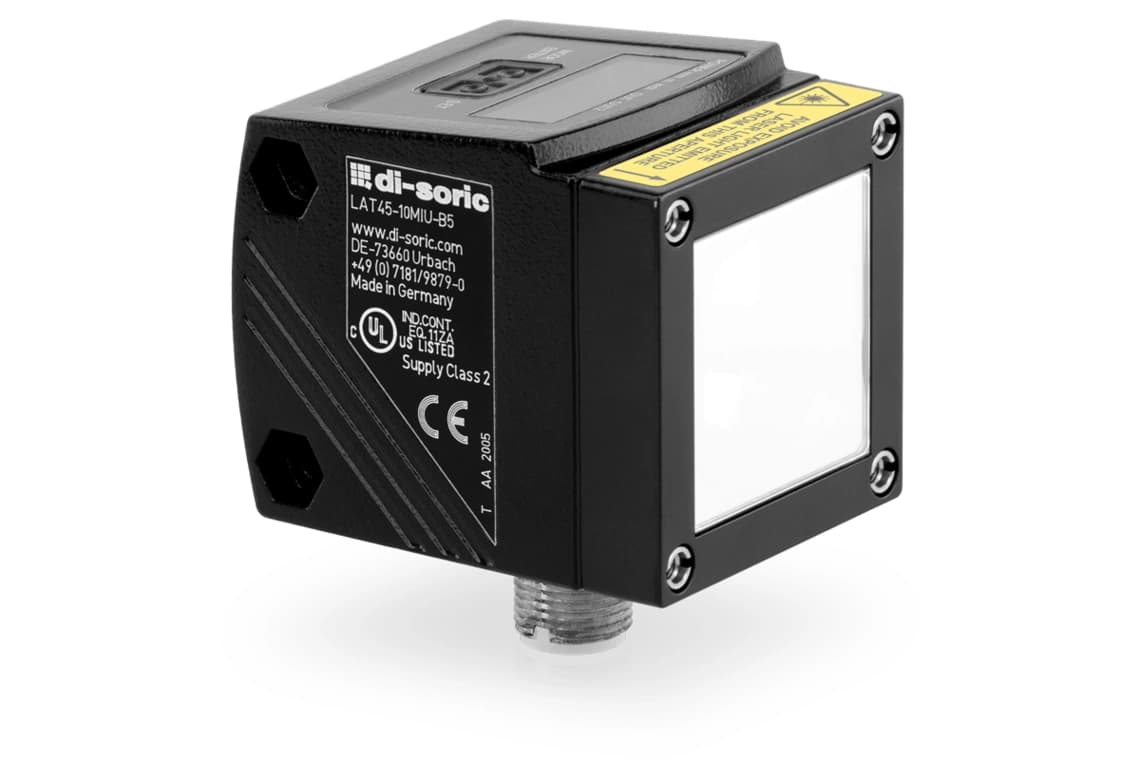

LAT45-10MIU-B5 LAT-45 Long range Optical sensors

Di-soric Optical sensors Industrial Automation - LAT45-10MIU-B5 LAT-45 Long range Optical sensors

LAT45-10MIU-B5 LAT-45 Long range Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about LAT45-10MIU-B5 LAT-45 Long range Optical sensors

Description

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
No-load current (max.)150 mA
Housing dimensions45 x 52 x 42 mm
Housing length52 mm
Housing height45 mm
Housing width42 mm
Housing materialDie-cast zinc (Black, painted)
Material window / opticsGlass
Weight309 g
Protection classIII, operation on protective low voltage
ApprovalsUL
DesignCuboid design
Switching outputpnp (2x), 200 mA, NO/NC, configurable
Analog output0 … 10 V, 4 … 20 mA
InterfaceIO-Link V1.1, COM2 Smart Sensor Profile
Light sourceLaser
Laser classCLASS 2 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed (Pp < 4 mW t = 1.3 ns)
Background suppression10000 … 100000 mm
Light spot sizeØ 15 mm (at distance of 10 m)
Ambient light immunity100 kLx
Measuring range200 … 10000 mm (90 % remission)
Resolution1.0 mm (90% remission, measuring frequency 15 Hz)
Reproducibility4.5 ... 50 mm (90% remission, measuring frequency 15 Hz)
Linearity error± 15 mm (90% remission, measuring frequency 15 Hz)
Sensitivity adjustmentKeypad
DisplayLED green - Status, yellow - Switching output
Measuring frequency1.0 … 33 Hz
Switching frequency0.3 Hz … 11 Hz
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin
Connection cableVK … /5
