KNS-R20/50K-N10PS-2C3 KNS Extended Capacitive sensors

Di-soric Capacitive sensors Industrial Automation - KNS-R20/50K-N10PS-2C3 KNS Extended Capacitive sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KNS-R20/50K-N10PS-2C3 KNS Extended Capacitive sensors

Description

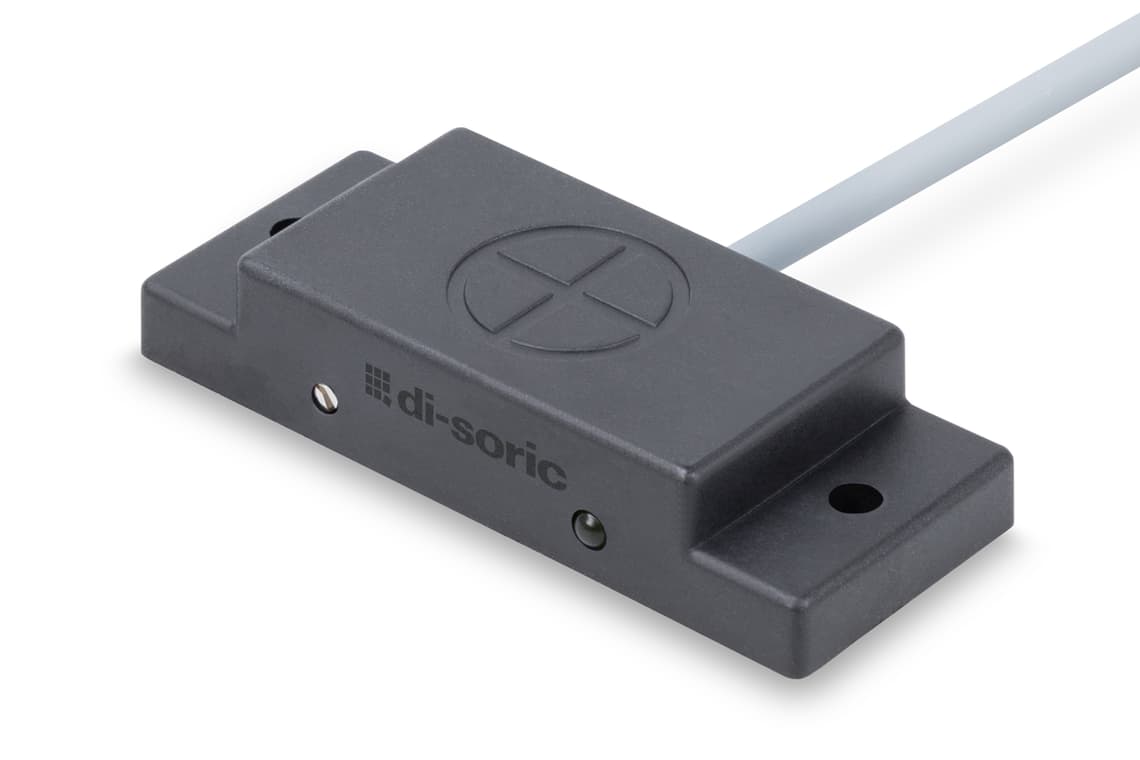

Capacitive proximity sensor KNS

KNS-R20/50K-N10PS-2C3
Article Number: 215444

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity is adjusted via IO-Link or multi-turn potentiometer.
Compact, flat sensor
Sensing surface on the top side
Screw fastening
LED display on the front side

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 10 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Installation typenon-flush
Housing dimensions50 x 20 mm
Housing length50 mm
Housing height10 mm
Housing width20 mm
MaterialPBT (Sensor probe)
Protection classIII, operation on protective low voltage
Operating principleCapacitive
Evaluationdigital
DesignCuboid design
Scope of deliverySensor
Switching outputpnp, 200 mA, NO
Voltage drop (max.)1.5 V
Switching distance (SN)10 mm
Switching hysteresis (max.)< 15 %
Switching frequency (factory setting)100 Hz
Ambient temperature during operation-25 … +120 °C
Protection typeIP 67
ConnectionCable, 2.0 m, 3-pin
