Description

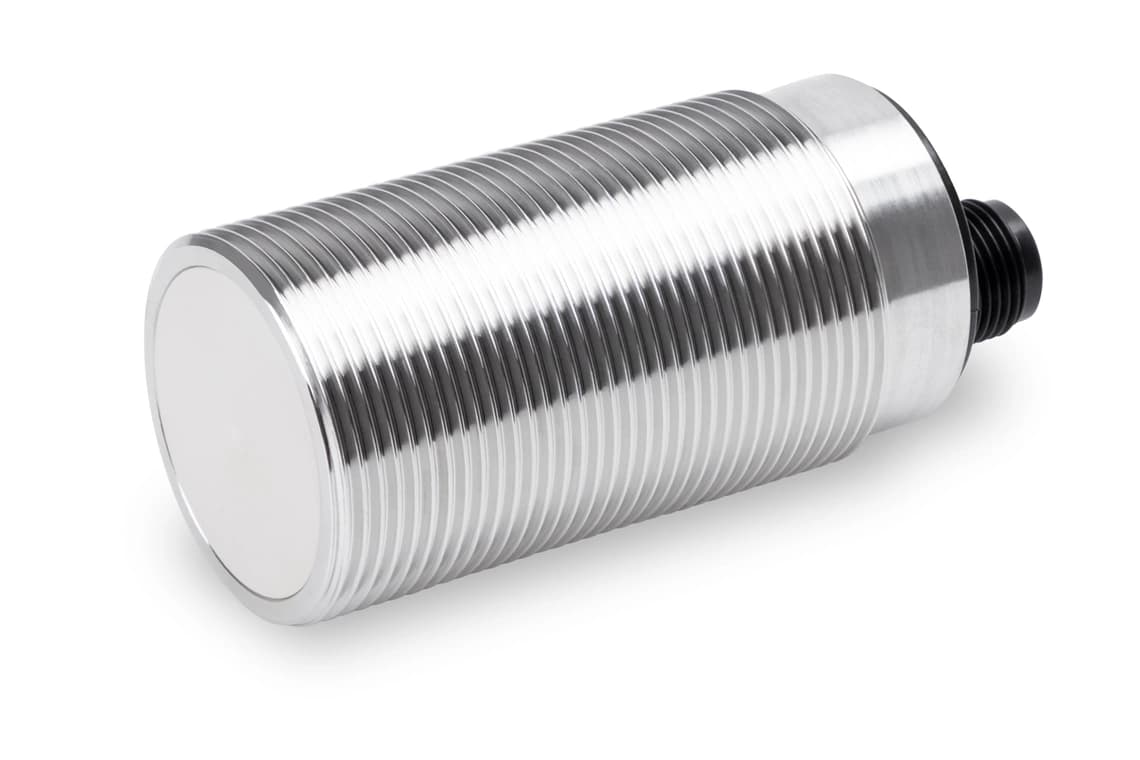

Capacitive proximity sensor KNS

KNS-M32/74V-B16G3-B4
Article Number: 214836

Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity is adjusted via IO-Link or multi-turn potentiometer.
Resists static discharges up to 40 kV
Large operating distance
Increased voltage range of 10 ... 40 V DC
Temperature-resistant sensor surface up to 120°C
Metal casing

Collapse all
Service voltage10 … 40 V DC
No-load current (max.)< 20 mA
Installation typeFlush
ThreadM32 x 1,5
Housing length61 mm
Housing materialStainless steel
Weight200 g
Tightening torque30 Nm (max.)
Protection classIII, operation on protective low voltage
Operating principleCapacitive
DesignThread
Scope of deliverySensor, 2 x Mutter M32, Setting tool
Switching outputPush-pull, 200 mA, NO/NC, antivalent
Voltage drop (max.)1 V (200 mA)
Switching distance (SN)16 mm (0 … 16 mm adjustable)
Standardized measuring plate24 x 24 x 1 mm
Switching hysteresis (max.)< 8 %
Switching frequency (factory setting)50 Hz
Ambient temperature during operation-30 … +85 °C
Ambient temperature storage-40 … +85 °C
Ambient humidity operation35 … 95 %
Ambient humidity storage35 … 95 %
Protection typeIP 67
ConnectionConnector, M12, 4-pin, A-coded
