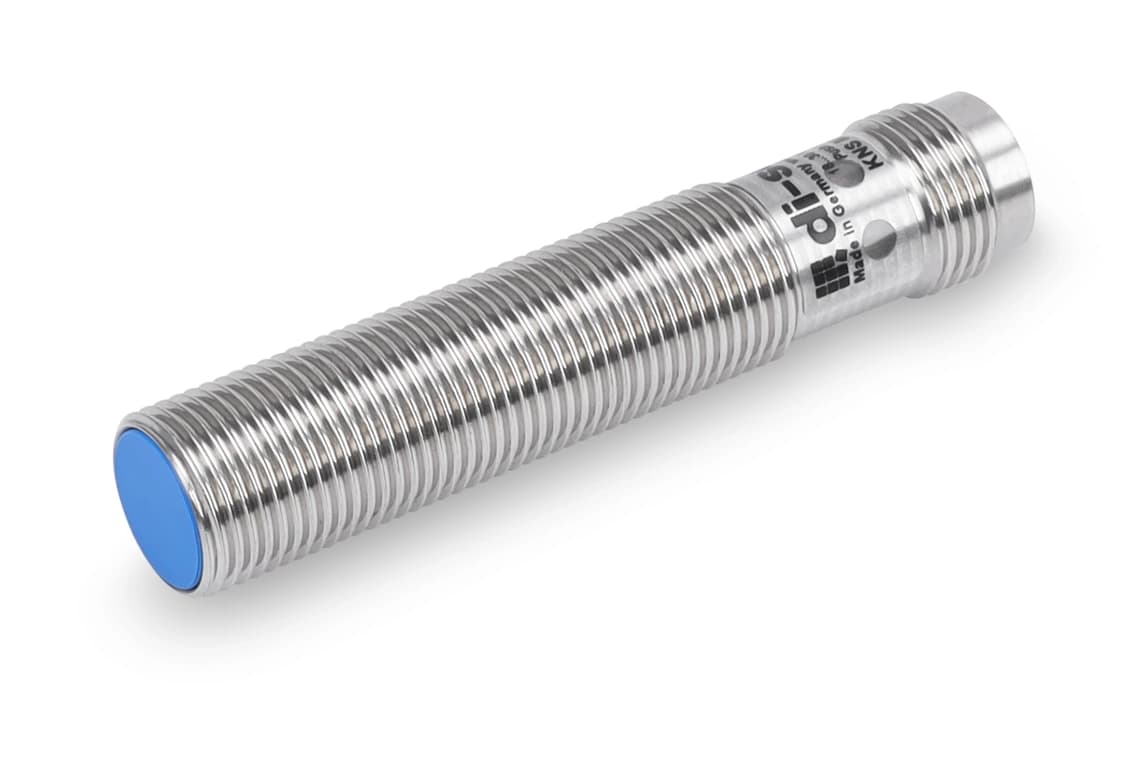

KNS M12M 04B G3-B3 KNS Extended Capacitive sensors

Di-soric Capacitive sensors Industrial Automation - KNS M12M 04B G3-B3 KNS Extended Capacitive sensors

KNS M12M 04B G3-B3 KNS Extended Capacitive sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KNS M12M 04B G3-B3 KNS Extended Capacitive sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)15 mA (24 V DC)
Insulation voltage endurance500 V
Installation typeFlush
ThreadM12 x 1
Housing length60 mm
Housing materialStainless steel
MaterialPBT (Sensor probe)
Protection classIII, operation on protective low voltage
Operating principleCapacitive
DesignThread
Scope of deliverySetting tool
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2 V
Switching distance (SN)4 mm (0.1 to 8 mm adjustable)
Standardized measuring plate12 x 12 x 1 mm
Switching hysteresis (max.)15 %
Sensitivity adjustmentPotentiometer (12-turn)
DisplayLED yellow - Output signal
Switching frequency100 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation-20 … +70 °C
Protection typeIP 65 / IP 67
ConnectionConnector, M12, 3-pin, A-coded
