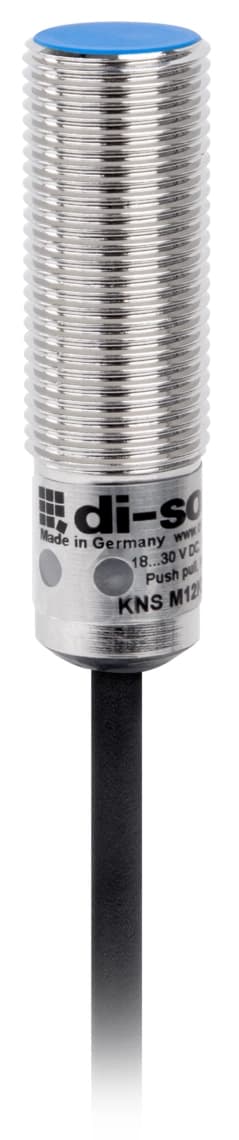

KNS M12KM 4B G3-2R KNS Extended Capacitive sensors

Di-soric Capacitive sensors Industrial Automation - KNS M12KM 4B G3-2R KNS Extended Capacitive sensors

KNS M12KM 4B G3-2R KNS Extended Capacitive sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KNS M12KM 4B G3-2R KNS Extended Capacitive sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)15 mA (24 V DC)
Insulation voltage endurance500 V
Installation typeFlush
ThreadM12 x 1
Housing length40 mm
Housing materialBrass (nickel-plated)
Material of cablePolyurethane
MaterialPolyurethane (Sensor probe)
Weight40 g
Protection classIII, operation on protective low voltage
Operating principleCapacitive
DesignThread
Operation modesSTANDARD, HIGH RESOLUTION, SPEED
Scope of delivery2 x M12 nuts
Switching outputPush-pull, 100 mA, NO/NC, switchable via IO-Link
Voltage drop (max.)2 V
InterfaceIO-Link
Switching distance (SN)4 mm (0.3 to 8 mm adjustable via IO-Link)
Standardized measuring plate12 x 12 mm
Switching hysteresis (max.)< 15 %
Sensitivity adjustmentIO-Link
DisplayLED yellow - Output signal
Switching frequency (factory setting)100 Hz (STANDARD)
Switching frequency (STANDARD)100 Hz
Switching frequency (HIGH RESOLUTION)10 Hz
Switching frequency (SPEED)200 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 10 … 55 Hz / 0.5 mm
Ambient temperature during operation-20 … +70 °C
Protection typeIP 65
ConnectionCable, 2.0 m, 3-pin, 3 x 0.14 mm²
