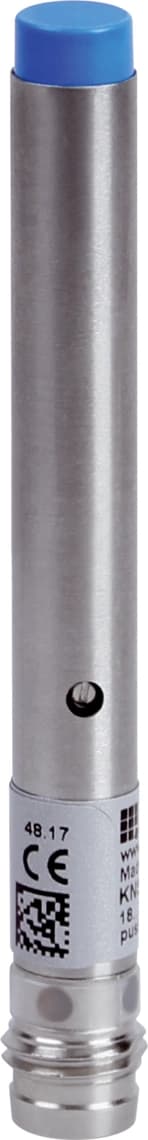

KNS D6.5M 03N G3-T3 KNS Extended Capacitive sensors

Di-soric Capacitive sensors Industrial Automation - KNS D6.5M 03N G3-T3 KNS Extended Capacitive sensors

KNS D6.5M 03N G3-T3 KNS Extended Capacitive sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KNS D6.5M 03N G3-T3 KNS Extended Capacitive sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)15 mA (24 V DC)
Insulation voltage endurance500 V
Installation typenon-flush
DiameterØ 6.5 mm (Diameter)
Housing length59.5 mm
Housing materialStainless steel
MaterialPPS (Sensor probe)
Weight10 g
Protection classIII, operation on protective low voltage
Operating principleCapacitive
DesignCylinder
Scope of deliverySetting tool
Switching outputPush-pull, 100 mA, NO/NC
Voltage drop (max.)2.4 V
Switching distance (SN)3 mm (0.1 to 4 mm adjustable)
Standardized measuring plate8 x 8 x 1 mm
Switching hysteresis (max.)15 %
Sensitivity adjustmentPotentiometer (11-turn)
DisplayLED yellow - Output signal
Switching frequency100 Hz
Readiness delay (max.)300 ms
Ambient temperature during operation-25 … +70 °C
Protection typeIP 65 / IP 67
ConnectionConnector, M8, 3-pin
