Kapadiya Automation

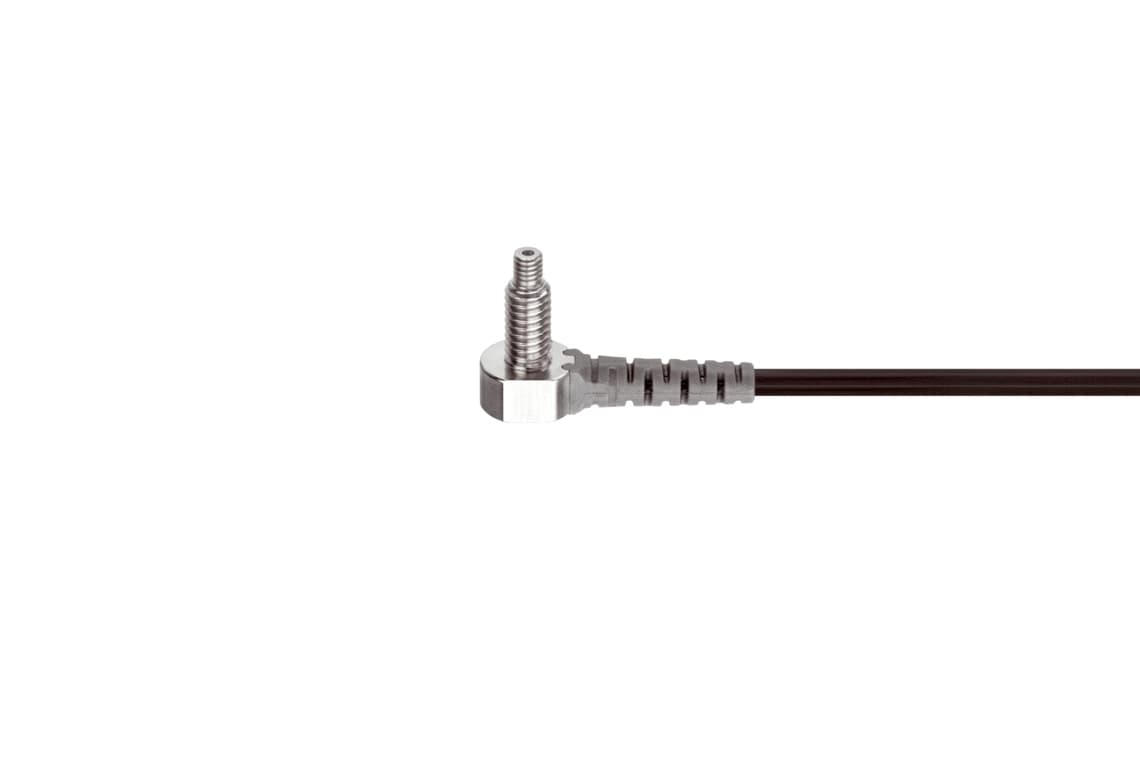

KLTR-M4-T2-0.5K Thread Optical sensors

Di-soric Optical sensors Industrial Automation - KLTR-M4-T2-0.5K Thread Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KLTR-M4-T2-0.5K Thread Optical sensors

Description

Plastic fiber optics

KLTR-M4-T2-0.5K
Article Number: 209955

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.
Low installation depth
90° deflection
Small parts detection
Optional attachment optics
Cutting knife included

Collapse all
Length2,000 mm (Can be shortened)
ThreadM4
Light apertureradial
Bending radius> 15 mm
FiberCoaxial, Ø 0.25 mm (1x), Ø 0.25 mm (10x)
Material of fiberPlastic
MaterialStainless steel (Sensor probe) PE (Coating)
Operating principleDiffuse sensor
DesignThread
CharacteristicsWith cable protection bushing
To be used forDevice series OLV-K Amplifier
Range90 mm
ResolutionØ 0.05 mm
Temperature resistance-55 … +70 °C
