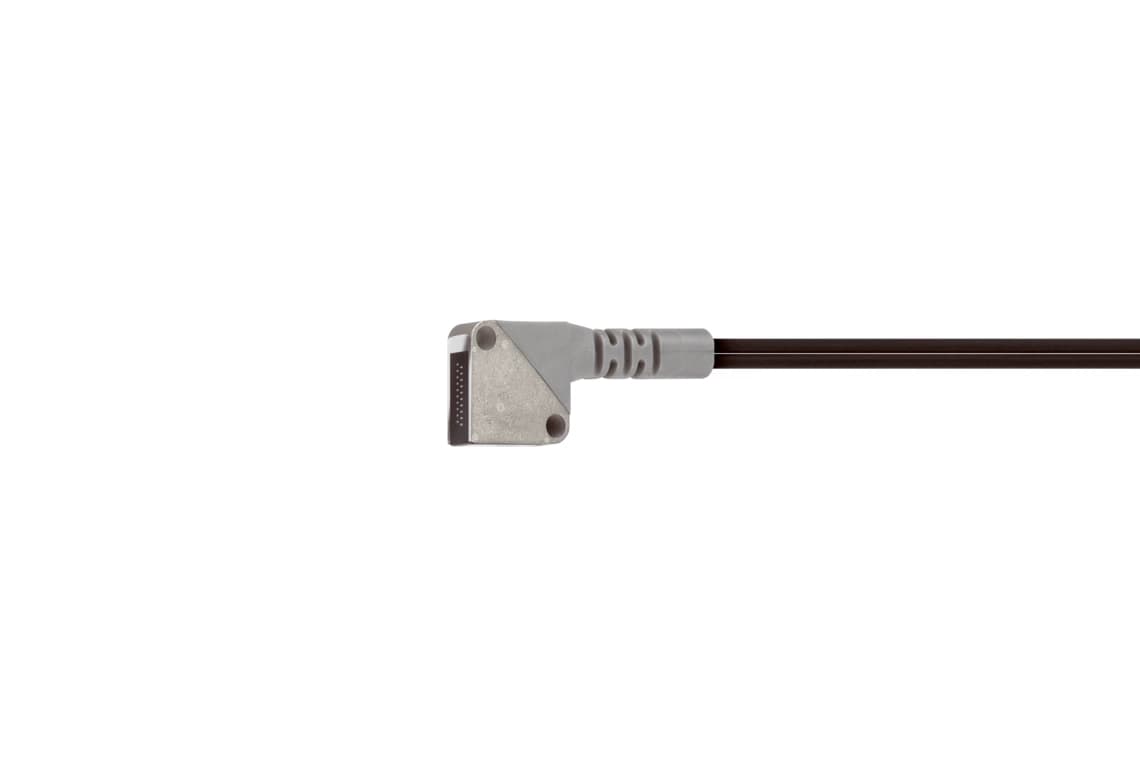

KLTM-Q10-T1-5 Cuboid design Optical sensors

Di-soric Optical sensors Industrial Automation - KLTM-Q10-T1-5 Cuboid design Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KLTM-Q10-T1-5 Cuboid design Optical sensors

Description

Plastic fiber optics

KLTM-Q10-T1-5
Article Number: 209959

di-soric offers a wide range of fiber optic products with accessories. The portfolio includes, among others, sensor probes made of stainless steel with bend protection, sensor probes with light bands for range monitoring and fiber optics for detection of the smallest parts.
Area detection without gaps
Accurate detection

Collapse all
Length1,000 mm (cannot be shortened)
Housing dimensions10 x 10 x 3.5 mm
Housing length10 mm
Housing height10 mm
Housing width3.5 mm
Light apertureaxial
Bending radius> 25 mm
FiberParallel, Ø 0.265 mm (16x)
Cross-section converter4.24 mm
Material of fiberPlastic
MaterialStainless steel (Sensor probe) PE (Coating)
Operating principleDiffuse sensor
DesignCuboid design
CharacteristicsWith cable protection bushing
To be used forDevice series OLV-K Amplifier
Range100 mm
ResolutionØ 0.1 mm
Temperature resistance-55 … +70 °C
