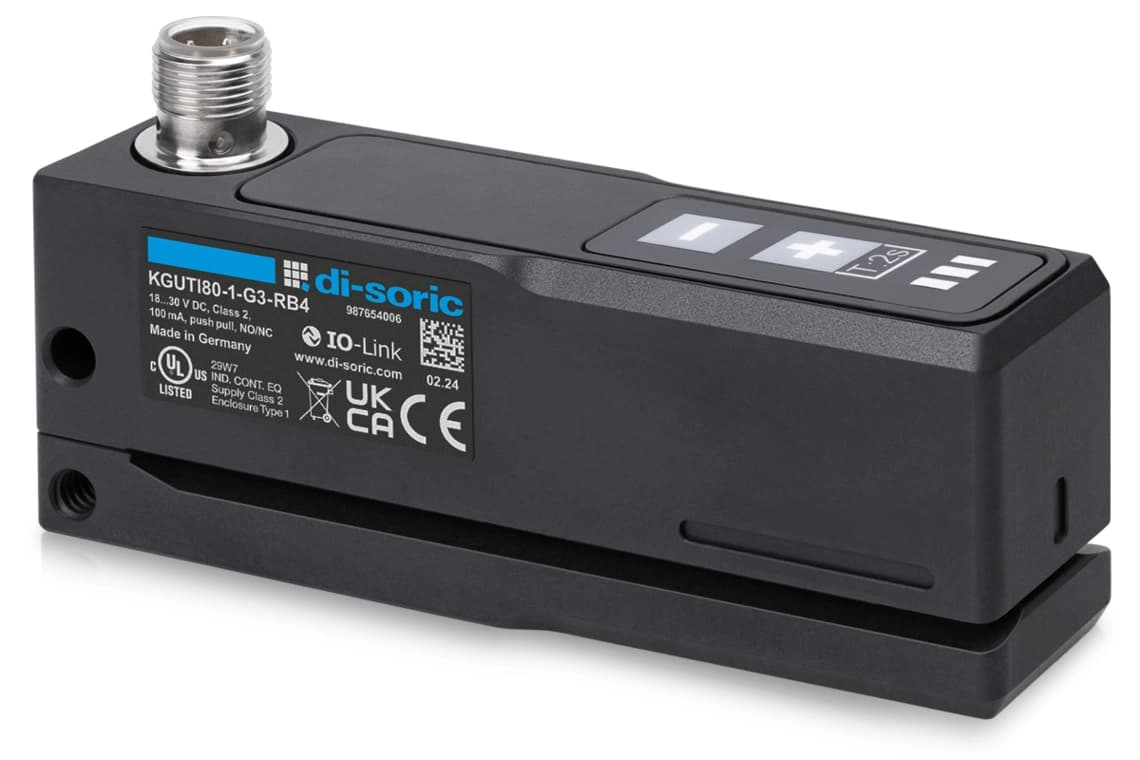

KGUTI80-1-G3-RB4 KGUTI Capacitive Capacitive sensors

Di-soric Capacitive sensors Industrial Automation - KGUTI80-1-G3-RB4 KGUTI Capacitive Capacitive sensors

KGUTI80-1-G3-RB4 KGUTI Capacitive Capacitive sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KGUTI80-1-G3-RB4 KGUTI Capacitive Capacitive sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)< 40 mA
Insulation voltage endurance500 V
Fork opening1 mm
Leg length internal85 mm
Housing dimensions24 x 36 x 100 mm
Housing length100 mm
Housing height36 mm
Housing width24 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleCapacitive
DesignFork
CharacteristicsConnector outlet at the top
Product seriesKGUTI Capacitive
Operating modesSTANDARD, HIGH RESOLUTION, SPEED
Scope of deliverySensor, Instructions available online
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2.5 V
InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile 2nd Edition V1.1 SSP 4.1.1)
Detection range22 mm
Reproducibility (STANDARD)< 0.15 mm
Reproducibility (HIGH RESOLUTION)< 0.1 mm
Reproducibility (SPEED)< 0.2 mm
Label length> 2 mm
Label interspace> 2 mm
Label thickness< 0.9 mm
Sensitivity adjustmentKeypad, Remote teach, IO-Link
DisplayLED green - Status, yellow - Switching output, Red - Warning
Band speed (STANDARD)< 300 m/min (depending on label and carrier tape)
Band speed (HIGH RESOLUTION)< 150 m/min (depending on label and carrier tape)
Band speed (SPEED)< 500 m/min (depending on label and carrier tape)
Response time (STANDARD)< 0.6 ms
Response time (HIGH RESOLUTION)< 1.2 ms
Response time (SPEED)< 0.3 ms
Readiness delay (max.)300 ms
Ambient temperature during operation0 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVK …
