Get more information about KGUTI50-1-G3-T3 KGUTI Capacitive Capacitive sensors

Description

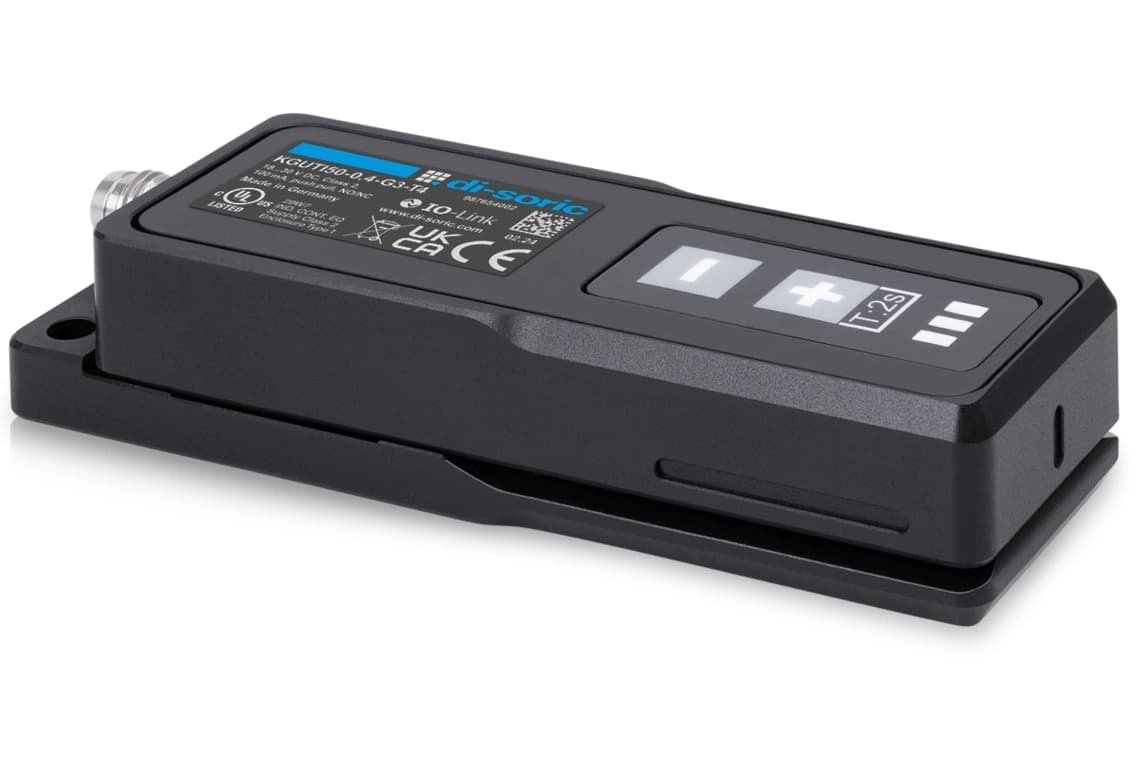

Capacitive label sensor KGUTI

KGUTI50-1-G3-T3
Article Number: 214206

The innovative dual operation concept—implemented using either IO-Link configuration and diagnosis or auto-teach—makes it possible to put the sensors into operation quickly.

Detection of transparent and paper labels
Intuitive teach-in using a membrane keyboard and with fine adjustment
IO-Link
Robust metal housing
Separated housing

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)< 40 mA
Insulation voltage endurance500 V
Fork opening1 mm
Leg length internal50 mm
Housing dimensions32 x 22 x 102 mm
Housing length102 mm
Housing height22 mm
Housing width32 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleCapacitive
DesignFork
CharacteristicsConnector outlet at the back
Product seriesKGUTI Capacitive
Operating modesSTANDARD, HIGH RESOLUTION, SPEED
Scope of deliverySensor, Instructions available online
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2.5 V
InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile 2nd Edition V1.1 SSP 4.1.1)
Detection range22 mm
Reproducibility (STANDARD)< 0.15 mm
Reproducibility (HIGH RESOLUTION)< 0.1 mm
Reproducibility (SPEED)< 0.2 mm
Label length> 2 mm
Label interspace> 2 mm
Label thickness< 0.9 mm
Sensitivity adjustmentKeypad, IO-Link
DisplayLED green - Status, yellow - Switching output, Red - Warning
Band speed (STANDARD)< 300 m/min (depending on label and carrier tape)
Band speed (HIGH RESOLUTION)< 150 m/min (depending on label and carrier tape)
Band speed (SPEED)< 500 m/min (depending on label and carrier tape)
Response time (STANDARD)< 0.6 ms
Response time (HIGH RESOLUTION)< 1.2 ms
Response time (SPEED)< 0.3 ms
Readiness delay (max.)300 ms
Ambient temperature during operation0 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
