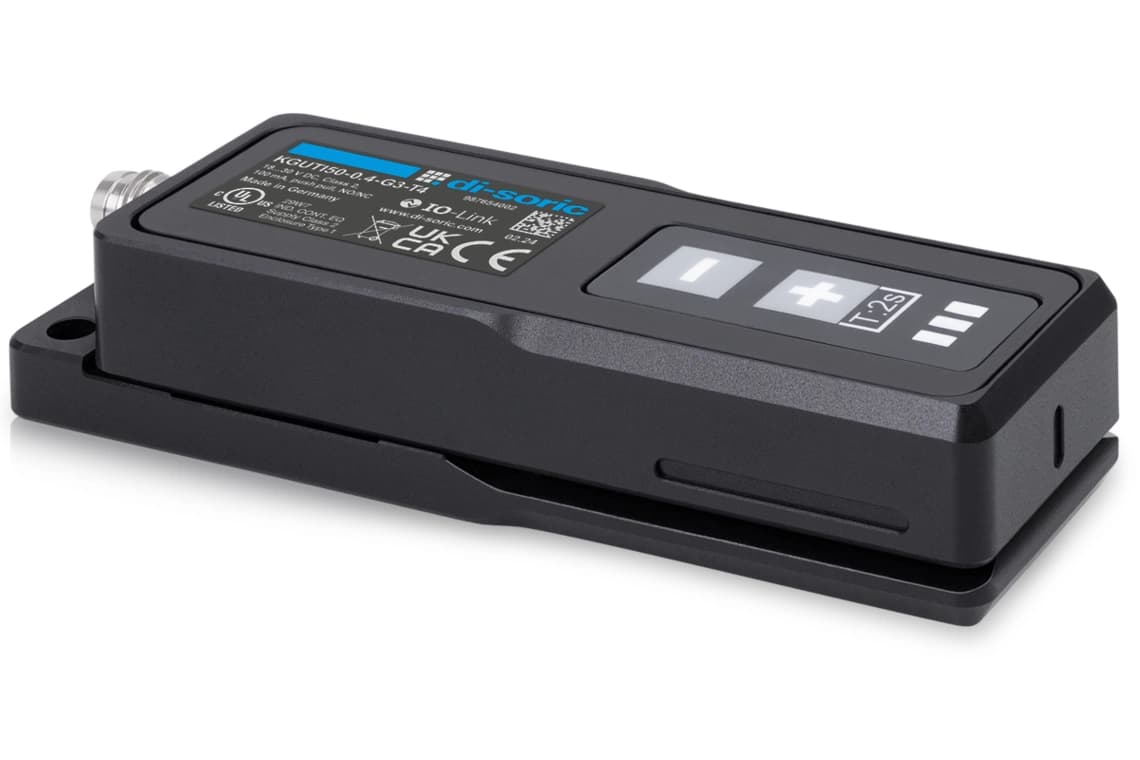

KGUTI50-0.4-G3-T4 KGUTI Capacitive Capacitive sensors

Name: KGUTI50-0.4-G3-T4 KGUTI Capacitive Capacitive sensors
Brand: Di-soric
SKU: kguti50-04-g3-t4-kguti-capacitive-capacitive-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about KGUTI50-0.4-G3-T4 KGUTI Capacitive Capacitive sensors

Description

Capacitive label sensor KGUTI

KGUTI50-0.4-G3-T4
Article Number: 214205

The innovative dual operation concept—implemented using either IO-Link configuration and diagnosis or auto-teach—makes it possible to put the sensors into operation quickly.

Detection of transparent and paper labels
Intuitive teach-in using a membrane keyboard and with fine adjustment
IO-Link
Robust metal housing
Separated housing
Remote teach with key-lock function
Parallel operation Pin2 / label detected and IO-Link (pin 4)

Collapse all

Service voltage18 … 30 V DC

No-load current (max.)< 40 mA

Insulation voltage endurance500 V

Fork opening0.4 mm

Leg length internal50 mm

Housing dimensions32 x 21,4 x 102 mm

Housing length102 mm

Housing height21.4 mm

Housing width32 mm

Housing materialAluminum (Black, Anodized)

Protection classIII, operation on protective low voltage

ApprovalsUL

Operating principleCapacitive

DesignFork

CharacteristicsConnector outlet at the back

Product seriesKGUTI Capacitive

Operating modesSTANDARD, HIGH RESOLUTION, SPEED

Scope of deliverySensor, Instructions available online

Switching outputPush-pull, 100 mA, NO/NC, switchable

Voltage drop (max.)2.5 V

InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile 2nd Edition V1.1 SSP 4.1.1)

Detection range22 mm

Reproducibility (STANDARD)< 0.15 mm

Reproducibility (HIGH RESOLUTION)< 0.1 mm

Reproducibility (SPEED)< 0.2 mm

Label length> 2 mm

Label interspace> 2 mm

Label thickness< 0.3 mm

Sensitivity adjustmentKeypad, Remote teach, IO-Link

DisplayLED green - Status, yellow - Switching output, Red - Warning

Band speed (STANDARD)< 300 m/min (depending on label and carrier tape)

Band speed (HIGH RESOLUTION)< 150 m/min (depending on label and carrier tape)

Band speed (SPEED)< 500 m/min (depending on label and carrier tape)

Response time (STANDARD)< 0.6 ms

Response time (HIGH RESOLUTION)< 1.2 ms

Response time (SPEED)< 0.3 ms

Readiness delay (max.)300 ms

Ambient temperature during operation0 … +60 °C

Protection typeIP 67

ConnectionConnector, M8, 4-pin

Connection cableTK … /4
