Get more information about ID620-BM38-EP15/300PRO ID-620 Fixed-mounted ID ReadersID-620 Fixed-mounted ID Readers

Description

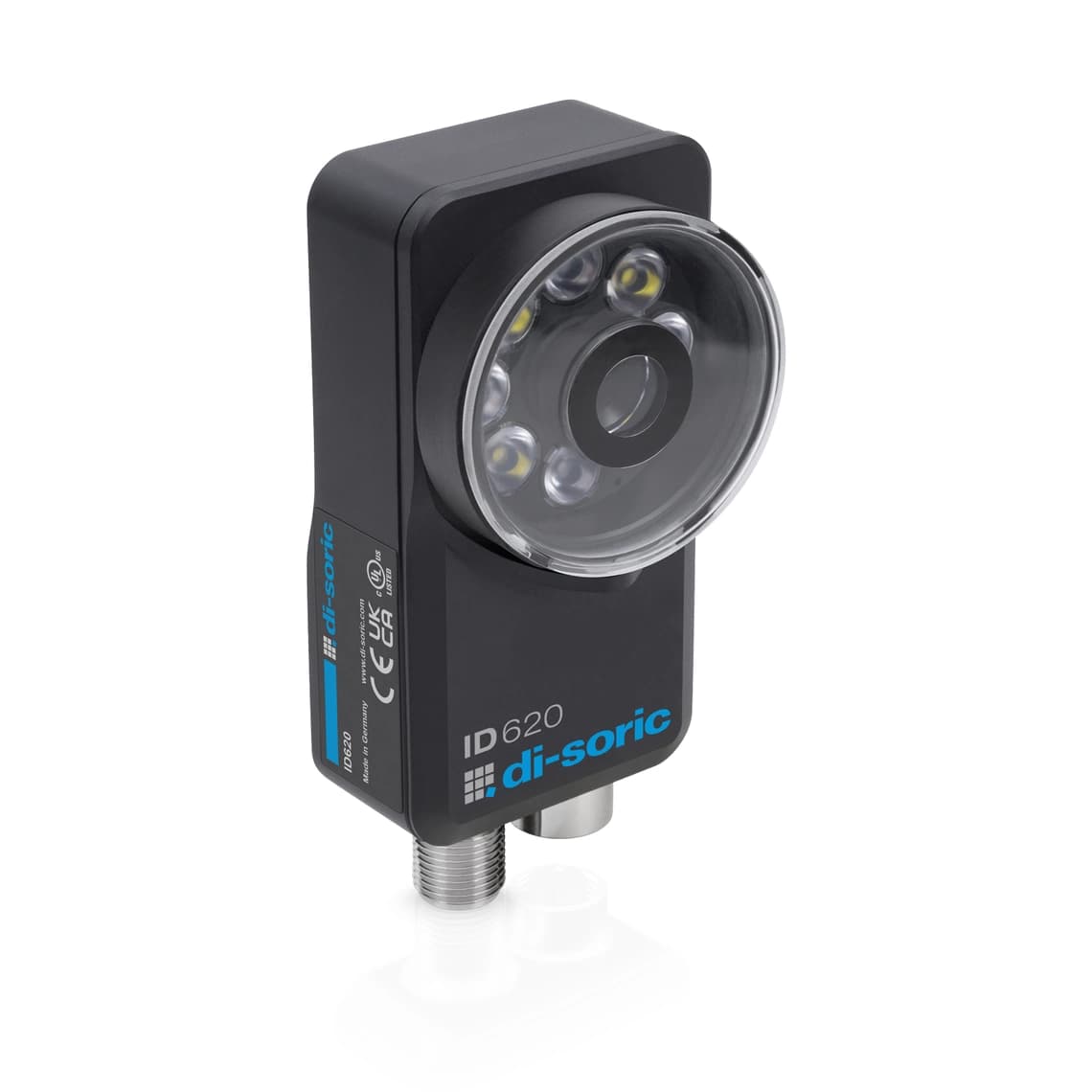

ID-620 fixed-mounted ID reader

ID620-BM38-EP15/300PRO
Article Number: 215467

The ID-620 offers the proven user-friendliness of the di-soric fixed-mounted ID reader, combined with significantly improved performance. This allows it to read codes reliably and quickly even in large fields of view – even if they are located in variable positions within the image. In addition to 1D and 2D codes, the ID-620 code reader also supports OCR and impresses here with its higher computing power for even faster results.

Localize and Detect (Read) ID code
DPM (Direct Part Mark) upgrade for reading directly marked codes
Very performant, even with large search areas
High power LED illumination in red and white
Flexible and productive Software nVision-i
Parameter changes via linked Profinet inputs during execution
Simple & intuitive parameterization
Flexible working distances of 50 - 2,000 mm by changing lenses
Upgrade option: OCR

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)1000 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions85 x 45 x 34 mm
Housing length34 mm
Housing height85 mm
Housing width45 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA (Window / optics)
Lens connectionS-mount
Weight185 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
ModelID-620
DesignCuboid design
Inspection tasksRead code (large search area), Code Grading
Shutterglobal
Code type - 1D-Codes (barcodes)Code 2 of 5, Codabar, Code 128, Code 39, Databar, UPC / EAN, Pharmacode
Code type - 2D-CodesAztec Code, Data Matrix, Dotcode, QR
Code type - Stacked codesPDF 417
Scope of deliveryID620-BM38-EP15/300PRO, O-S1-S-080-40
Internal lightsHigh-power LED
Switching outputPush-pull (4x), 100 mA
Switching output number4 (programmable, 1 (Ready))
Voltage drop (max.)2 V
ProtocolsTCP/IP, FTP/SFTP, Profinet
ColorRed / white switchable (internal)
Focal length8 mm (exchangeable S-mount lens)
Resolution1456 x 1088 Pixel (approx. 1.6 megapixels)
Working distance50.0 … 2000 mm
DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)30 images/second
Ambient temperature during operation0 … +50 °C
Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection typeIP 67
ConnectionConnector, M12, 12-pin (A-coded)
Connection 2Socket, M12, 8-pin (X-coded)
CableConnection cables max. 25 m
