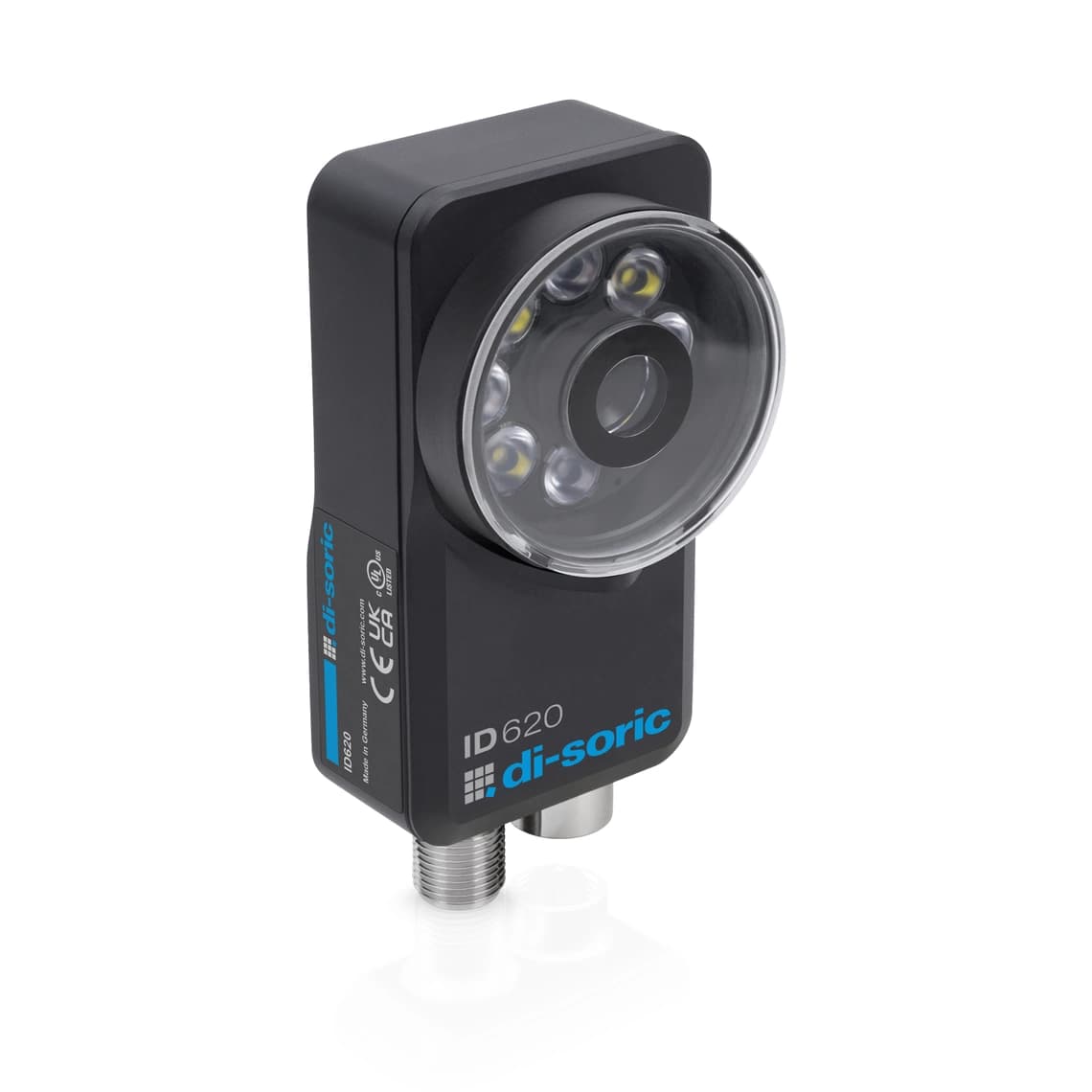

ID620-BM38-EP15/300OCR ID-620 Fixed-mounted ID ReadersID-620 Fixed-mounted ID Readers

Di-soric ID Readers Industrial Automation - ID620-BM38-EP15/300OCR ID-620 Fixed-mounted ID ReadersID-620 Fixed-mounted ID Readers

ID620-BM38-EP15/300OCR ID-620 Fixed-mounted ID ReadersID-620 Fixed-mounted ID Readers

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about ID620-BM38-EP15/300OCR ID-620 Fixed-mounted ID ReadersID-620 Fixed-mounted ID Readers

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)1000 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions85 x 45 x 34 mm
Housing length34 mm
Housing height85 mm
Housing width45 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA (Window / optics)
Lens connectionS-mount
Weight185 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
ModelID-620
DesignCuboid design
Inspection tasksRead code (large search area), OCR
Shutterglobal
Code type - 1D-Codes (barcodes)Code 2 of 5, Codabar, Code 128, Code 39, Databar, UPC / EAN, Pharmacode
Code type - 2D-CodesAztec Code, Data Matrix, Dotcode, QR
Code type - Stacked codesPDF 417
Scope of deliveryID620-BM38-EP15/300OCR, O-S1-S-080-40
Internal lightsHigh-power LED
Switching outputPush-pull (4x), 100 mA
Switching output number4 (programmable, 1 (Ready))
Voltage drop (max.)2 V
ProtocolsTCP/IP, FTP/SFTP, Profinet
ColorRed / white switchable (internal)
Focal length8 mm (exchangeable S-mount lens)
Resolution1456 x 1088 Pixel (approx. 1.6 megapixels)
Working distance50.0 … 2000 mm
DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)30 images/second
Ambient temperature during operation0 … +50 °C
Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection typeIP 67
ConnectionConnector, M12, 12-pin (A-coded)
Connection 2Socket, M12, 8-pin (X-coded)
CableConnection cables max. 25 m
