Description

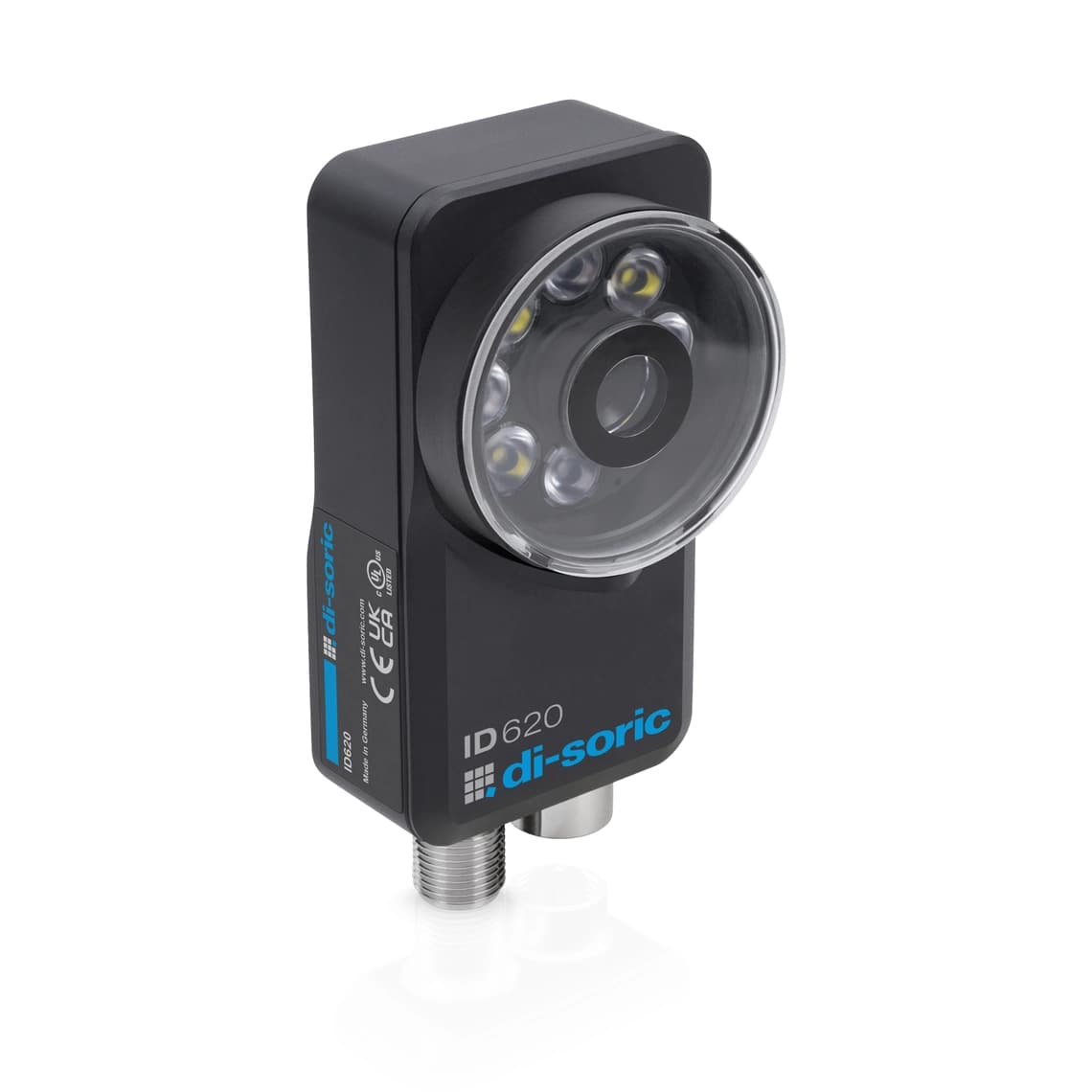

ID-620 fixed-mounted ID reader

ID620-BM38-EP15/300
Article Number: 215466

The ID-620 offers the proven user-friendliness of the di-soric fixed-mounted ID reader, combined with significantly improved performance. This allows it to read codes reliably and quickly even in large fields of view – even if they are located in variable positions within the image. In addition to 1D and 2D codes, the ID-620 code reader also supports OCR and impresses here with its higher computing power for even faster results.

Localize and Detect (Read) ID code
Upgrade-Option: PRO (Direct Part Mark) + OCR
Very performant, even with large search areas
High power LED illumination in red and white
Flexible and productive Software nVision-i
Parameter changes via linked Profinet inputs during execution
Simple & intuitive parameterization
Flexible working distances of 50 - 2,000 mm by changing lenses

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)1000 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions85 x 45 x 34 mm
Housing length34 mm
Housing height85 mm
Housing width45 mm
Housing materialAluminum (Black, Anodized)
MaterialPMMA (Window / optics)
Lens connectionS-mount
Weight185 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
ModelID-620
DesignCuboid design
Inspection tasksRead code (large search area)
Shutterglobal
Code type - 1D-Codes (barcodes)Code 2 of 5, Codabar, Code 128, Code 39, Databar, UPC / EAN, Pharmacode
Code type - 2D-CodesAztec Code, Data Matrix, Dotcode, QR
Code type - Stacked codesPDF 417
Scope of deliveryID620-BM38-EP15/300, O-S1-S-080-40
Internal lightsHigh-power LED
Switching outputPush-pull (4x), 100 mA
Switching output number4 (programmable, 1 (Ready))
Voltage drop (max.)2 V
ProtocolsTCP/IP, FTP/SFTP, Profinet
ColorRed / white switchable (internal)
Focal length8 mm (exchangeable S-mount lens)
Resolution1456 x 1088 Pixel (approx. 1.6 megapixels)
Working distance50.0 … 2000 mm
DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)30 images/second
Ambient temperature during operation0 … +50 °C
Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection typeIP 67
ConnectionConnector, M12, 12-pin (A-coded)
Connection 2Socket, M12, 8-pin (X-coded)
CableConnection cables max. 25 m
