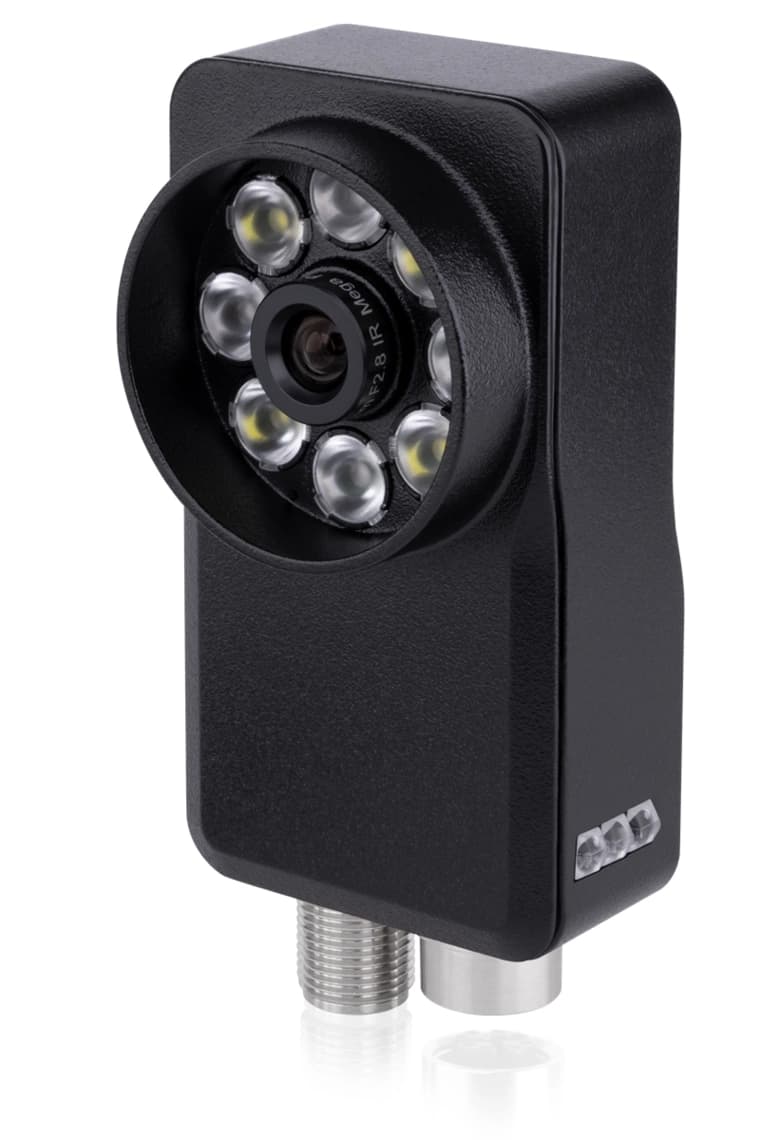

ID600-BM38-EP15/300 ID-600 Fixed-mounted ID ReadersID-600 Fixed-mounted ID Readers

Di-soric ID Readers Industrial Automation - ID600-BM38-EP15/300 ID-600 Fixed-mounted ID ReadersID-600 Fixed-mounted ID Readers

ID600-BM38-EP15/300 ID-600 Fixed-mounted ID ReadersID-600 Fixed-mounted ID Readers

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about ID600-BM38-EP15/300 ID-600 Fixed-mounted ID ReadersID-600 Fixed-mounted ID Readers

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)1000 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions85 x 45 x 34 mm
Housing length34 mm
Housing height85 mm
Housing width45 mm
Housing materialDie-cast zinc (Black, powder-coated)
MaterialPMMA (Window / optics)
Lens connectionS-mount
Weight265 g
Protection classIII, operation on protective low voltage
Risk group (DIN EN 62471)Risk group 1
ApprovalsUL
ModelID-600
DesignCuboid design
NoteEtherNet/IP from nVision-i 24.1
Inspection tasksRead code (defined search area)
Shutterglobal
Code type - 1D-Codes (barcodes)Code 2 of 5, Codabar, Code 128, Code 39, Databar, UPC / EAN, Pharmacode
Code type - 2D-CodesAztec Code, Data Matrix, Dotcode, QR
Code type - Stacked codesPDF 417
Scope of deliveryID600-BM38-EP15/300, O-S1-S-080-40, CS60-WINDOW
Internal lightsHigh-power LED
Switching outputPush-pull, 100 mA
Switching output number4 (programmable, 1 (Ready))
Voltage drop (max.)2 V
InterfaceEthernet
ProtocolsTCP/IP, FTP/SFTP, Profinet, EtherNet/IP
ColorRed / white switchable (internal)
Focal length8 mm (exchangeable S-mount lens)
Resolution1456 x 1088 Pixel
Pixel size3.45 x 3.45 μm
Working distance50.0 … 2000 mm
DisplayLED green - Operation, yellow - DATA-Link yellow - Trigger
FPS - Frames Per Second (max.)30 images/second
Flash length< 2 ms
Ambient temperature during operation0 … +50 °C
Vibration/shock resistance10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Protection typeIP 67
ConnectionConnector, M12, 12-pin (A-coded)
Connection 2Socket, M12, 8-pin (X-coded)
CableConnection cables max. 25 m
